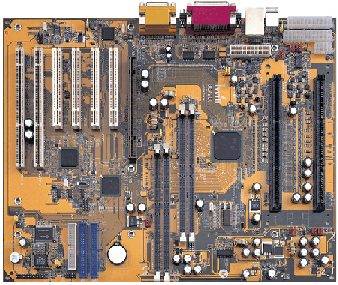

DCA200 - Iwill
Specifications Processor Supports Dual Intel Pentium III/II Xeon Processors from 400 MHz to 1 GHz Supports "Bye-Bye Jumper" (Software CPU Multiplier Setting) Chipset Intel&#reg 840 AGPset Supports 133/100 MHz FSB Windbond&#reg 83627-HF I/O set Bus Frequency "Bye-Bye Jumper", Iwill Smart Setting (BIOS CPU Multiplier Setting from 2X to 8X in 0.5 increments Supports 133/100/66 MHz FSB System Memory 4 x RIMM Sockets Support up to 2GB of RDRAM Modules Supports 64/128/256/512 MB RDRAM Module Supports ECC Type and SPD RIMM Module (For Servers, ECC Type RDRAM modules are recommended) On Board IDE Dual ATA 66/33 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 I/O Interface 1 x FDD (Floppy Port) 2 x ATA/66 IDE Ports 1 x LAN Port(RJ45) 1 x PS/2 Mouse (supports auto swapping) 1 x PS/2 Keyboard (supports auto swapping) 1 x Parallel Port 2 x Serial Ports 2 x USB Ports 3 x Audio Port (Line-IN/Line-OUT/MIC) 1 x Game Port 1 x AGP Pro Fan Header with ON/OFF Control 1 x Chassis Intrusion Header 1 x Internal IR Header 1 x SMBus Header Expansion Slots 1 x AGP Pro Slot (AGP Pro 50 and AGP 4X Modes) 2 x 64-bit/66 MHz PCI 2.2 Bus Master Slots 4 x 32-bit/33 MHz PCI 2.2 Bus Master Slots BIOS 4 Mb PLCC FWH (Firmware Hub) with Flash Protection "Bye-Bye Jumper" IWILL Smart Setting PC99/Win98 Compliant Support Plug and Play (PnP) Support APM 1.2 Support DMI 2.1 Support ACPI 1.0 Year2000 Compliant SCSI, IDE, LS120, ZIP & CD-ROM Bootable Power Management 1 x WTXA 24-pin Power Connector 1 x WTXB 22-pin Power Connector 1 x WTXC 8-pin Power Connector 1 x ATX 20-pin Power Connector Keyboard Power On Power Failure Recovery (AC Loss Resume) RTC Alarm Suspend to Disk (STD) Suspend to RAM (STR) Wake on Modem (WOM) Windows 98/95 Power Off Board Size WTX Form Factor - 14.2 in x 11.5 in (360mm x 290mm) 6 layer PCB PC Health Monitoring CPU/System Voltages & Temperatures and Fan Status Detection Drivers AC'97 Audio Codec Driver Intel IDE Bus Master Driver for Win95 Intel INF File LAN Driver Special Utilities Acrobat Reader Auto Run "IWILL Power Installer" with Tools and Manuals IWILL PC Doctor Hardware Monitoring Utility Suspend to Disk (STD,ZVHDD.EXE Trend Micro PC-Cillin Anti-Virus Program Package Contents 1 x IWILL DCA200 Motherboard 1 x User Manual 1 x IWILL Power Installer CD 1 x ATA-66 IDE Cable 1 x Floppy Cable 2 x Continuity Module (C-Module) 1 x Dual Xeon Retention Kit 1 x Thermal Sensor for HDD (optional) 1 x Thermal Sensor for System (optional) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
