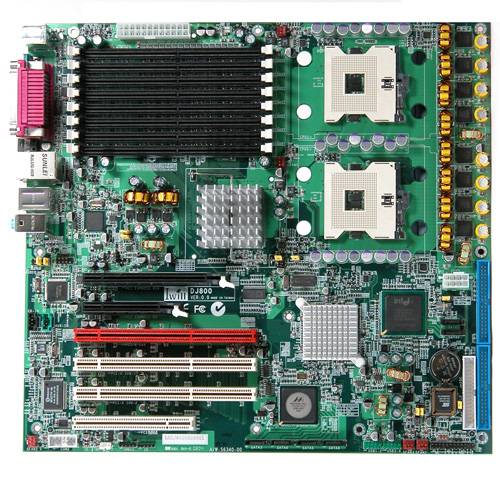

DJ800 - Iwill
Processor Intel® Dual Xeon Socket 604 CPUs Supports 800MHz FSB Chipset Intel E7525 Chipset MCH Intel ICH5R Intel PXH Winbond 83627 HF System Memory 8 DIMMs for 240-pin DDR2 400 DIMM sockets Uses Registered DDR2 with ECC or Non-ECC memory Supports total system memory size of up to 16GB Audio Integrated Analog Device AD1980 Professional 6-channel Audio with S/PDIF out Support MIC IN/LINE OUT for the front panel AC '97 CODEC Internal I/O connector 34-pin Floppy Connector 4-pin CD-In and Aux-In audio input connector IDE 2x 40-pin IDE connectors? Dual Channel Master Mode Ultra DMA 100/66/33 Serial ATA 2 Serial ATA ports supported by HR with RAID 0, 1 4 Serial ATA ports supported by Marvell(Ver. 1.1) Support RAID 0, 1, 10 Support hot swap Rear Panel I/O PS/2 mouse and keyboard connectors 1 x UART 16550 serial port (COM1) 1 x 25-pin parallel port with ECP/EPP support 4 x on board USB 2.0 ports 1 x Gigabit Ethernet LAN RJ-45 port 1 x IEEE-1394 port 1 x S/PDIF Out Rear Out and Center Out Audio Phone Jacks - Line Out, Mic In, Line-In. Expansion Slots One PCI Express x16 slot for graphics One PCI Express x4 slot One PCI-X 64-bit/133 MHz Two PCI-X 64-bit/100 MHz One PCI 32-bit / 33 MHz LAN Intel 82541PI Gigabit Ethernet Controller One RJ-45 connectors for GbE Support PME USB2.0 4 x external USB 2.0 ports 4 x internal USB 2.0 ports IEEE 1394 TI TSB43AB22 Controller One pin header for front panel IEEE-1394 port One external IEEE-1394 header System Management Hardware Monitor control by Winbond W83627HF Support AC power failure BIOS AMI BIOS Flash write protection by BIOS and one jumper ACPI 1.1 APM 1.2 Support ACPI S1, S3 Support ASF 2.0 Form Factor E-ATX form factor EPS 12V power connectors (24 pin + 8 pin) Qualified Chassis IWT-TJ03 S800-J Tower 6 x external 5.25" drive bays 6 x internal 3.5 drive bays Third party heatsink: Thermaltake A1964 3U Active cooler Screw+Spring Coolermaster E1U-NPFCS-04 1U Passive cooler Screw+Spring E2U-N7RCS-04 2U Active cooler Screw+Spring E2U-NPJCS-04 2U Passive cooler Screw+Spring E3W-N7RSS-04 3U Active cooler Screw+Spring E3W-NPTXS-04 3U Passive cooler Screw+Spring CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
