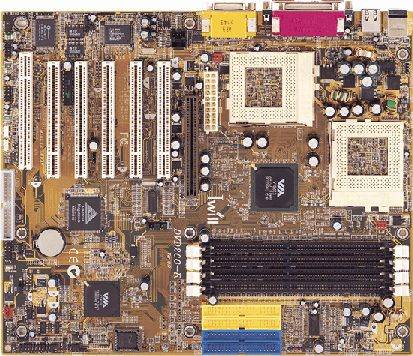

DVD266 - Iwill
Specifications Processor Supports Dual Intel Pentium III Processors from 500 MHz to 1 GHz and higher Supports Single Intel Celeron Processors from 300 MHz to 733 MHz Adjustable Vcore Function Chipset VIA Apollo Pro266 Chipset VIA VT8633 BGA552 VIA VT8233 BGA376 C-Media CMI8738 Sound Chip Bus Frequency Supports 133/100/66 MHz FSB (up to 150 MHz) Microstepping Iwill Smart Setting CPU Multiplier Selection from BIOS (2X to 12X) CPU External Frequency Selection from BIOS (66 to 150 MHz) Software CPU Frequency Setting System Memory 4 x 184-pin Sockets to Support a Maximum of 4 GB of DDR Memory PC2100/PC1600 (DDR266/200) SDRAM Supports 184-pin Unbuffered/Registered DIMM On Board IDE Dual ATA 100/66/33 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Audio C-Media® CMI-87383D Sound Chip 4.1 Channel Hardware Sound 32-voice HRTF-base 3D Positional Audio Supports Microsoft® DirectSoundTM and Aureal® A3D Supports EAX (Environmental Audio eXtension) Sound Effects I/O Interface 1 x FDD (Floppy Port) 2 x ATA/100 IDE Ports 1 x PS/2 Keyboard (supports auto swapping) 1 x PS/2 Mous (supports auto swapping) 1 x Parallel Ports 2 x Serial Ports 4 x USB Ports (2 x optional) 3 x Audio Ports (Line-IN/Line-OUT/MIC) 1 x Game/MIDI Port 1 x Internal IR Header 1 x SMBus Header Expansion Slots 1 x AGP Slot (AGP 4X/2X mode) 5 x PCI 2.2 Bus Master Slots BIOS 2 Mb EEPROM with Flash Protection Bye-Bye Jumper Iwill Smart Setting PC99 Compliant Plug and Play (PnP) ACPI 1.0 APM 1.2 DMI 2.1 Adjustable Vcore Manually Assign PCI IRQ Power Management BIOS ROM Flash Control Chassis Intrusion Fan ON/OFF Control Sgnal On-board DC/DC Switching Regulator Supports Vcore up to 35A Current Power On by LAN/Ext Modem/Int Modem/PS2 Keyboard/PS2 Mouse/RTC/PME Resume by LAN/Ext Modem/Int Modem/PS2 Keyboard/ PS2 Mouse/RTC/PME Temperature Sensors Voltage Monitoring Board Size ATX Form Factor - 12 in x 10.2 in (305 mm x 260 mm) Special Utilities Acrobat Reader Audio Rack Sound Utility Auto Run Iwill Power Installer CD with Tools and Manual Hardware Monitoring Utility Trend-Micro full-function PC-Cillin Anti-Virus program Package Contents 1 x Iwill DVD266 Motherboard 1 x User Manual 1 x Iwill Power Installer CD 1 x ATA/100 IDE Cable 1 x Floppy Cable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
