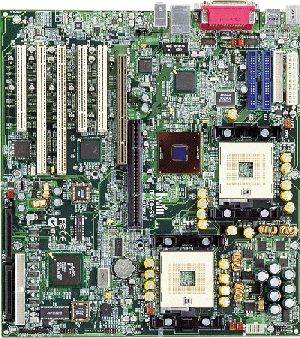

DX400-SN - Iwill
Specifications Processor Supports single or dual Intel® Xeon™ (Socket 603) processor Supports processor speeds from 1.3 GHz to 1.7 GHz and higher Chipset Intel® 860 chipset MCH (1012 OLGA) - memory & graphic controller ICH2 (360 EBGA) - I/O controller FWH (32 PLCC) - BIOS and management controller P64H (241 mBGA) - 64-bit bus master PCI expander SCSI controller - dual channel Ultra 160 SCSI controller (64-bit PCI) Intel 82550 controller - LAN (supports 10/100 Mbps bandwidth - RJ45 LAN connector) Onboard AOL2 (Alert-ON-LAN 2) controller chip Bus Frequency Supports 400 MHz front side bus Provides 3.2 GB/s transfer speed between the processor and memory System Memory Supports MECC for memory expansion (Memory Expansion Card Connector) Supports DRDRAM modules (RAMBUS memory) Supports PC800 and PC600 RAMBUS Maximum of 8 GB memory capacity (when using MEC8) MEC8 (Memory Expansion Card) Support for up to 8 GB DRDRAM Two-way memory bank interleaving provides outstanding memory performance 8 slots support 64, 128, 256, 512 and 1 GB DRDRAM modules Frame/bracket mounting kit included On Board SCSI Integrated 64-bit PCI-to-Ultra3 SCSI 64-bit, 33 MHz and 66 MHz PCI (backward compatible with 32-bit) Double Edge Clocking, transfer rates up to 160 MB/s per channel Domain Validation / Cyclical Redundancy Checking Dual channel SCSI / Low host CPU utilization ACPI Power Management Supports Windows® 95, 98 and NT; NetWare® UnixWare® Solaris® x86; Linux® I2O and others On Board IDE Dual ATA 100/66/33 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Audio Audio Codec '97 (AD1881A) compatible using an AD1881 audio codec AC'97 2.1 compliant link for audio and telephony CODECs 4-pin CD-ROM audio (ATAPI) header Expansion Slots 1 x AGP PRO slot supports AGP PRO (1.5V only) and 4X 2 x 64-bit/66 MHz Bus Master PCI slots 3 x 32-bit/33 MHz Bus Master PCI slots 2 x ATA/100 connectors I/O Interface 1 x SMBus header 1 x Internal IR connector 3 x Audio ports (Line-IN, Line-OUT, MIC) 1 x Floppy port 1 x 9-pin 16550-based serial port 1 x 25-pin SPP/ECP/EPP parallel port 2 x PS/2 connectors (Keyboard and Mouse) 6 x USB ports (2 x internal USB) Power Management LAN Resume by LAN/Modem/PS2 mouse, keyboard/RTC Supports Intel LDCM/LDSM (optional) Supports ACPI Supports APM Supports DMI Supports BIOS ROM flash control to provide H/W and BIOS protection Supports AC Loss Recovery PC Health Monitoring Supports voltage sensor to detect out of range values Supports three (3) fan speed monitoring and controller System temperature monitoring Chassis intrusion detection Board Size ATX Form Factor - 12 in x 13 in (305mm x 330mm) MEC8 board size - 12.8 in x 5.5 in (325mm x 140mm) 8 layer PCB Package Contents 1 x Iwill DX400-SN Motherboard 1 x MEC8 (Memory Expansion Card) 1 x User Manual 1 x Iwill Power Installer CD 1 x ATA/100 IDE cable 1 x Ultra160 SCSI cable 1 x Floppy cable Miscellaneous Approved Chassis Recommendations for DX400-SN: Chenbro SR207 Evercase ECS5000LX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
