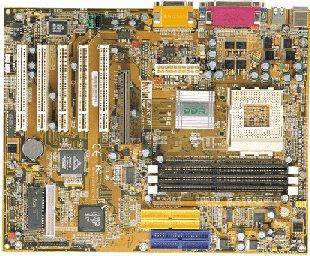

KA266-R - Iwill
Specifications Processor Supports Socket A for AMD® AthlonTM & DuronTM Processors Supports CPU Speeds from 600 MHz up to 1.2 GHz and Higher Supports Adjustable Vcore & VIO Chipset ALi® MAGiK 1 Chipset ALi® M1647 (North Bridge) ALi® M1535D+ (South Bridge) AMI® 80649 ATA/100 IDE RAID Chip C-Media® CMI8378 Sound Chip Bus Frequency Supports DDR 266/200 MHz FSB Bye-Bye Jumper, Iwill Smart Setting (Software CPU Frequency Setting) System Memory 3 x 184-pin Sockets to Support a Maximum of 3 GB of DDR Memory Supports PC2100/PC1600 (DDR266/200) DDR SDRAM Supports 184-pin Unbuffered DIMM On Board IDE RAID AMI® ATA/100 IDE RAID Controller Dual ATA/100 IDE Channels RAID 0, 1, 0+1 Functions On Board IDE Dual ATA 100/66/33 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Audio C-Media® CMI-87383D Sound Chip 4.1 Channel Hardware Sound 32-voice HRTF-base 3D Positional Audio Supports Microsoft® DirectSoundTM and Aureal® A3D Supports EAX (Environmental Audio eXtension) Sound Effects I/O Interface 1 x FDD (Floppy Port) 2 x ATA/100 IDE Ports 1 x PS/2 Keyboard (supports auto swapping) 1 x PS/2 Mous (supports auto swapping) 1 x Parallel Ports 2 x Serial Ports 4 x USB Ports (2 x optional) 3 x Audio Ports (Line-IN/Line-OUT/MIC) 1 x Game/MIDI Port 1 x Internal IR Header 1 x SMBus Header Expansion Slots 1 x AGP Slot (AGP 4X/2X Mode; 32-bit/66 MHz AGP Protocol) 5 x PCI 2.2 Bus Master slots BIOS 2 Mb EEPROM with Flash Protection "Bye-Bye Jumper" Iwill Smart Setting PC99 Compliant Supports Plug and Play (PnP) Supports ACPI 1.0 Supports APM 1.2 Supports DMI 2.1 Power Management BIOS ROM Flash Control Fan ON/OFF Control Signal Manually Assign PCI IRQ Power On by LAN/Ext Modem/Int Modem/PS2 Keyboard/PS2 Mouse/RTC/PME Resume by LAN/Ext Modem/Int Modem/PS2 Keyboard/PS2 Mouse/RTC/PME Temperature Sensors Voltage Monitoring Board Size ATX Form Factor - 12 in x 9.7 in (305 mm x 244 mm) Special Utilities Acrobat Reader Audio Rack Sound Utility Auto Run Iwill Power Installer CD with Tools and Manual Hardware Monitoring Utility Trend-Micro Full-function PC-Cillin Anti-Virus Program AMI IDE RAID Easy Setup using simple configuration utilities Package Contents 1 x Iwill KA266-R Motherboard 1 x User Manual 1 x Iwill Power Installer CD 2 x ATA/100 IDE Cables 1 x Floppy Cable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
