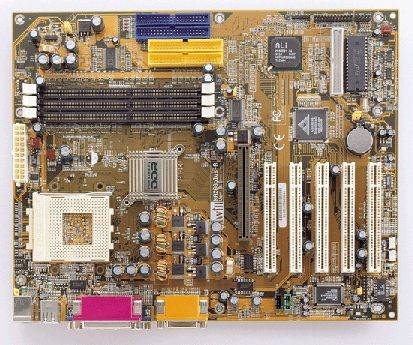

KA266Plus - Iwill
Specifications Processor Supports Socket A type AMD Athlon or Duron processors Supports AMD Athlon processors from 700 MHz to 1.33 GHz and higher Supports AMD Duron processors from 600 to 850 MHz and higher Chipset ALi MAGiK 1 chipset ALi M1647 (North Bridge) ALi M1535D+ (South Bridge) C-Media CMI8738 MX Sound Chip Bus Frequency Supports DDR266/200 MHz FSB MicroStepping™ Iwill CPU Frequency Setting Bye-Bye Jumper™ IWILL Smart Setting (Software CPU Frequency Setting) System Memory 3 x 184-pin pin sockets support a maximum of 3 GB of DDR memory Supports PC2100/PC1600 (DDR266/200) DDR SDRAM Supports 184-pin Unbuffered DIMM On Board IDE Dual ATA 100/66/33 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Audio Support 6 channel speakers (5.1 configuration) 32-voice HRTF-base 3D positional audio Supports Microsoft DirectSound 3D and Aureal A3D Supports EAX sound effects (Environment Audio eXtension) Supports SPDIF via IWILL SuperAudio (optional) I/O Interface 1 x FDD (Floppy Port) 2 x ATA/100 IDE Ports 1 x PS/2 Keyboard (supports auto swapping) 1 x PS/2 Mouse (supports auto swapping) 1 x Parallel Ports 2 x Serial Ports 4 x USB Ports (2 x optional) 3 x Audio Ports (Line-IN/Line-OUT/MIC) 1 x Game/MIDI Port 1 x Internal IR Header 1 x SMBus Header Expansion Slots 1 x AGP Slot (AGP 4X/2X Mode; 32-bit/66 MHz AGP Protocol) 5 x PCI 2.2 Bus Master slots BIOS 2 Mb EEPROM with Flash Protection "Bye-Bye Jumper" Iwill Smart Setting PC99 Compliant Supports Plug and Play (PnP) Supports ACPI 1.0 Supports APM 1.2 Supports DMI 2.1 Power Management BIOS ROM Flash Control Chassis Intrusion Fan ON/OFF Control Sgnal On-board DC/DC Switching Regulator Supports Vcore up to 35A Current Power On by LAN/Ext Modem/Int Modem/PS2 Keyboard/PS2 Mouse/RTC/PME Resume by LAN/Ext Modem/Int Modem/PS2 Keyboard/ PS2 Mouse/RTC/PME Temperature Sensors Voltage Monitoring Board Size ATX Form Factor - 12 in x 9.7 in (305 mm x 244 mm) Special Utilities Acrobat Reader Audio Rack Sound Utility Auto Run Iwill Power Installer CD with Tools and Manual Hardware Monitoring Utility Trend-Micro full-function PC-Cillin Anti-Virus program Package Contents 1 x Iwill KA266Plus Motherboard 1 x User Manual 1 x Iwill Power Installer CD 1 x ATA/100 IDE Cables 1 x Floppy Cable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
