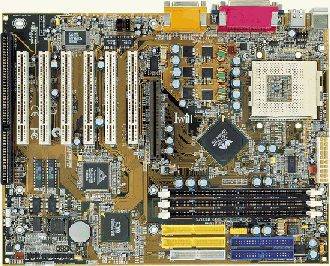

KK266-R - Iwill
Specifications Processor Supports Socket A for AMD® AthlonTM & DuronTM Processors Supports CPU Speed From 600 MHz up to 1.2GHz and Higher Supports adjustable Vcore & VIO Chipset VIA Apollo KT133A Chipset (North Bridge Controller) VIA VT82C686B Chipset (South Bridge Controller) AMI® MG80649 ATA/100 IDE RAID Chip C-Media CMI8378 Sound Chip Bus Frequency Supports DDR266/200 MHz FSB MicroStepping™ Iwill CPU Frequency Setting Bye-Bye Jumper™ IWILL Smart Setting (Software CPU Frequency Setting) System Memory 3 x 168-pin DIMM Sockets Support up to 1.5 GB of PC133 Memory Supports PC133/PC100 SDRAM and VCM Memory Types Supports 64/128/256/512 MB SDRAM Modules Supports 3.3V Unbuffered/Registered DIMM On Board IDE RAID AMI® ATA/100 IDE RAID Controller Dual ATA/100 IDE Channels RAID 0, 1, 0+1 Functions On Board IDE Dual ATA 100/66/33 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Audio C-Media® CMI-87383D Sound Chip 4.1 Channel Hardware Sound 32-voice HRTF-base 3D Positional Audio Supports Microsoft® DirectSoundTM and Aureal® A3D Supports EAX (Environmental Audio eXtension) Sound Effects I/O Interface 1 x FDD (Floppy Port) 4 x ATA/100 IDE Ports 1 x PS/2 Keyboard (supports auto swapping) 1 x PS/2 Mouse (supports auto swapping) 1 x Parallel Port 2 x Serial Ports 4 x USB Ports (2 x optional) 3 x Audio Ports (Line-IN/Line-OUT/MIC) 1 x Game/MIDI Port 1 x Chassis Intrusion Header 1 x Internal IR Header 1 x SMBus Header Expansion Slots 1 x AGP Slot (AGP 4X/2X Mode; 32-bit/66 MHz AGP Protocol) 6 x PCI 2.2 Bus Master Slots 1 x ISA Slot BIOS 2 Mb EEPROM with Flash Protection "Bye-Bye Jumper" Iwill Smart Setting PC99 Compliant Supports Plug and Play (PnP) Supports ACPI 1.0 Supports APM 1.2 Supports DMI 2.1 Power Management RTC Alarm Wake ON LAN (WOL) Wake ON Modem (WOM) Windows 2000/98/95 Power Off Board Size ATX Form Factor - 12 in x 9.5 in (305 mm x 240 mm) Special Utilities Acrobat Reader Audio Rack Sound Utility Auto Run Iwill Power Installer CD with Tools and Manual Hardware Monitoring Utility Trend-Micro Full-function PC-Cillin Anti-Virus Program AMI IDE RAID Easy Setup using simple configuration utilities Package Contents 1 x Iwill KK266-R Motherboard 1 x User Manual 1 x Iwill Power Installer CD 2 x ATA/100 IDE Cables 1 x Floppy Cable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
