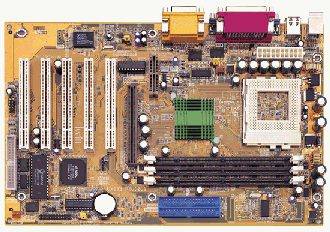

VX133 - Iwill
Specifications Processor Supports Socket 370 Intel Coppermine Pentium III/Celeron Processors Supports VIA Cyrix III Processors Supports CPU Speeds from 300 MHz up to 1 GHz and Higher Supports Adjustable Vcore & VIO Chipset VIA Apollo Pro 133A (VT82C694X AGPset) Chipset VIA VT82C686B "Super South Bridge" C-media CMI8738 Sound Chip Bus Frequency Supports 133/100/66 MHz FSB Supports CPU Multiplier from 3X to 12X Iwill Bye-Bye Jumper (Software Assign Ext. Frequency) System Memory 3 x 168-pin DIMM Sockets Support up to 1.5 GB of PC133 Memory Supports EDO, SDRAM, ESDRAM, VCM SDRAM Supports 64/128/256/512 MB SDRAM Modules Supports 3.3V Unbuffered/Registered DIMM Supports ECC Memory Modules On Board IDE Dual ATA/100 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Support PIO Mode up to Mode 4 Audio C-Media® CMI-87383D Sound Chip 4.1 Channel Hardware Sound 32-voice HRTF-base 3D Positional Audio Supports Microsoft® DirectSoundTM and Aureal® A3D Supports EAX (Environmental Audio eXtension) Sound Effects I/O Interface 1 x FDD (Floppy Port) 2 x ATA/100 IDE Ports 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Parallel Port 2 x Serial Ports 4 x USB Ports (2 x optional) 3 x Audio Ports (Line-IN/Line-OUT/MIC) 1 x Game/MIDI Port 1 x SIR Port 1 x Internal IR Header 1 x Internal Wake ON LAN (WOL) Header 1 x SMBus Header Expansion Slots 1 x AMR Slot 1 x AGP (AGP 4X/2X Mode) Slot 5 x PCI 2.2 Bus Master Slots BIOS 2Mb Flash ROM Plug and Play (PnP) Year2000 Compliant ACPI 1.0 APM 1.2 Power Management Adjustable Vcore(Normal/Increase 5%) Adjustable VIO (Normal/Increase 5% or 10%) BIOS ROM Flash Control by BIOS (provide H/W and S/W protection) Power ON by LAN/Ext Modem/Int Modem/PS2 Keyboard/PS2 Mouse Alarm Resume by LAN/Ext Modem/Int Modem/PS2 Keyboard/PS2 Mouse Alarm Suspend to RAM (STR) VRM 8.4 Board Size ATX Form Factor - 12 in x 7.6 in (305 mm x 193 mm) Special Utilities Acrobat Reader Audio Rack Sound Utility Auto Run Iwill Power Installer CD with Tools and Manual Hardware Monitoring Utility Trend-Micro full-function PC-Cillin Anti-Virus program Package Contents 1 x Iwill VX133 Motherboard 1 x Use Manual 1 x Iwill Power Installer CD 1 x ATA/100 IDE Cable 1 x Floppy Cable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
