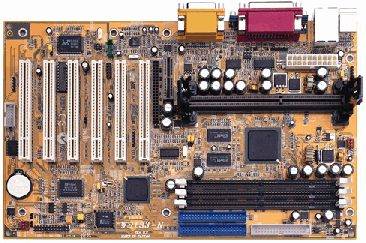

WS133 - Iwill
Specifications Processor Supports both 133 MHz and 100 MHz FSB Intel Pentium III/II Coppermine Processors from 266 to 733 MHz and Higher Chipset Intel i810e AGPset AC'97 2.0 Digital Link Integrated Intel i752 AGP 2X Graphics Engine in GMCH with 4MB of Display Cache Bus Frequency "Bye-Bye Jumper", Iwill Smart Setting (BIOS CPU Multiplier Setting from 2X to 8X in 0.5 increments Supports 133/100/66 MHz FSB System Memory 3 x DIMM Sockets Support PC100 SDRAM Up to 512MB when using 128Mbit Technology Up to 256MB when using 64/16Mbit Technology Supports Single or Double-Sided DIMM Modules Supports 3.3V Unbuffered / Registered DIMM Supports Symmetrical and Asymmetrical DRAM Addressing On Board IDE Dual ATA 66/33 IDE Channels Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120 Expansion Slots 1 x AMR Slot 6 x PCI Bus Master Slots (PCI 2.2 Compliant) 1 x IWILL PTI Slot for Digital Flat Panel Link and TV-Out I/O Interface 1 x FDD (Floppy Port) 2 x ATA/66 IDE Ports 1 x PS/2 Mouse 1 x PS/2 Keyboard 1 x Parallel Port (EPP,ECP) 2 x Serial Ports 2 x USB Ports 1 x VGA Port 3 x Audio Ports (Line-IN/Line-OUT/MIC) 1 x Game Port BIOS Intel 4Mb FWH (Firmware Hub) Year2000 Compliant Plug and Play Bye-Bye Jumper Iwill Smart Setting PC99/Win98 Compliant SCSI, IDE, LS120, ZIP & CD-ROM Bootable "Configure SDRAM Timing by SPD" Manually Assign PCI IRQ Power Management ATX Power Connector Keyboard Power On Power Failure Recovery (AC Loss Resume) RTC Alarm Suspend to Disk (STD) Suspend to RAM (STR) Wake on LAN (WOL) Wake on Modem (WOM) Windows 98/95 Power Off Board Size ATX Form Factor - 12 in x 7.4 in (305 mm x 188 mm) Special Utilities Acrobat Reader Auto Run "IWILL Power Installer" with Tools and Manuals IWILL PC Doctor Hardware Monitoring Utility Suspend to Disk (STD,ZVHDD.EXE Trend Micro PC-Cillin Anti-Virus Program Package Contents 1 x IWILL WS133 Motherboard 1 x User Manual 1 x IWILL Power Installer CD 1 x ATA-66 IDE Cable 1 x Floppy Cable 1 x 9-pin to 9-pin Ext. DSub Serial Port Cable 1 x Bracket with On-Hold (Dsub9) 1 x Custom ATX IO Shield CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : IWILL Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
