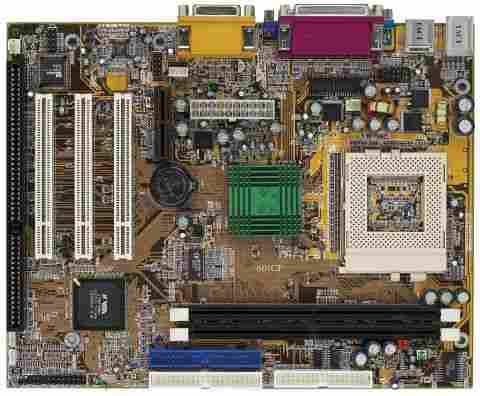

601CF - Jetway
FEATURES Support Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) ,VIA Cyrix C3 Processor,Optimized for 133MHz Front Side Bus Frequency VIA VT8601A chip integrated a high performance North Bridge,advance hardware 2D/3D GUI engine and South Bridge VT82C686B with Super I/O Support ATA 100 On chip VGA Support Hardware DVD Playback Software Audio Controller With On Board CODEC Compliant to AC97' V2.1 Support VCM SDRAM PC'99 Ready & PC'99 Colorful I/O Ports Design Support USB Controller & PS/2 Mouse , Standard IR (infrared) Functio Provide extra " three-wire" fans connectors PC Health Monitoring On Post Screen Jumperless Magic Install Y2K Compliant ACPI Supporting For OS Directed Power Management Modem Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Power Button Ride (Instant off or Delay 4 second power off) SPECIFICATION Processor Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) ,VIA Cyrix C3 Processor,optimized for 133MHz Front Side Bus Frequency Chipset VIA VT8601A (PLE 133) chip integrated a high performance North Bridge,advance hardware 2D/3D GUI engine and South Bridge VT82C686B with Super I/O CPU Bus Frequency Support Jump Select 66.7/100/133 MHZ CPU Bus Frequency CPU Bus Frequency , Choose 66 / 75 / 83 / 95 / 100 / 112 / 117 / 124 / 133 / 140 / 150 MHZ in BIOS Setup CPU Ratio Selection For 2 , 2.5 , 3 , 3.5 , 4 , 4.5 , 5 , 5.5 , 6 , 6.5 , 7 , 7.5 , 8 in BIOS Setup Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Three 32-bit PCI Bus Master Slots One AMR (Audio/Modem Riser) Slot One 16-bit ISA Slot System Memory Support 2 Banks of SDRAM from 8MByte to 1GByte Virtual Channel Memory (VCM SDRAM) support Synchronous or Asynchronous Host / SDRAM Bus Frequency 2 X 168-pins DIMM Scockets On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device On Board AGP V.G.A AGP1.0 compliant up to 533MB/sec transfer rate Advanced HW Acceleration for DVD playback UMA Architecture with 2/4/8 MB System Memory Sharable as Display Memory Fully DirectX Compliant Engine Integrated Programmable 24-Bit Ture-Color RAMDAC up to 230 MHz Pixel Clock Support DirectX6 / DirectX7 & Software MPEG Playback VGA DRIVER Support Windows 95/98 and Windows NT 4.0 and Windows 2000 On Board 3D Audio Software Audio Controller With On Board CODEC Complete to AC97' V2.1 Support 3D Surround Support 3D Positioning Full Duplex Operation For Simultaneous Record And Playback Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack On Board Ultra I/O 4 X USB Connectors 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) 1 X VGA Connector ITE Smart Guardian Smart Guardian to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension Micro ATX Form Factor with 24.4cm X CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
