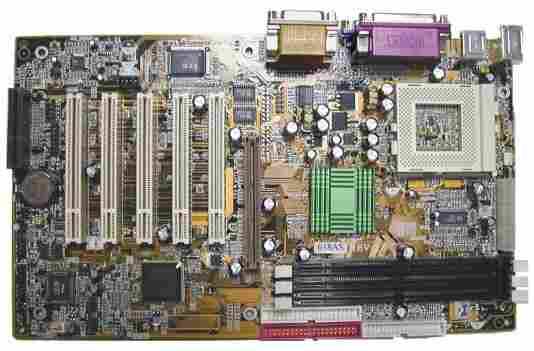

618AS - Jetway
FEATURES Support Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) Processor,Optimized for 133MHz Front Side Bus Frequency Intel 82815EP and 82801BA (ICH2) chipset Support ATA 100 Extend AGP Slot Support 4X AGP PCI 3D Audio Digital Sound Effect PC'99 Ready & PC'99 Colorful I/O Ports Design Support USB Controller & PS/2 Mouse , Standard IR (infrared) Functio Provide extra " three-wire" fans connectors Support Smart Card Security (Optional) JumperLess Frequency Magic Setting PC Health Monitoring On Post Screen Magic Install Y2K Compliant ACPI Supporting For OS Directed Power Management Moden Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Power Button Ride (Instant off or Delay 4 second power off) SPECIFICATION Processor Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) Processor,optimized for 133MHz Front Side Bus Frequency Chipset Intel 82815EP Memory Controller HUB (MCH) Intel 82801BA (ICH2) I/O Controller HUB CPU Bus Frequency Support Jump Select 66.7/100/133 MHZ CPU Bus Frequency CPU Bus Frequency , Choose One Step Add 1MHz From 66MHz Up to 160MHz in BIOS Setup (Frequency Magic Setting) CPU Ratio Selection For 2 , 2.5 , 3 , 3.5 , 4 , 4.5 , 5 , 5.5 , 6 , 6.5 , 7 , 7.5 , 8 in BIOS Setup Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Five 32-bit PCI Bus Master Slots One CNR Slot One 4X AGP Slot System Memory Support 3 Banks of SDRAM from 16MByte to 256MByte or 512MByte Main Memory 3 X 168-pins DIMM Scockets Non-ECC PC-100/PC-133 SDRAM On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device On Board 3D Audio Software Audio Controller With On Board CODEC Complete to AC97' Support 3D Surround Support 3D Positioning Full Duplex Operation For Simultaneous Record And Playback Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack On Board Ultra I/O On Board ITE 8712F Chipset 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) ITE Smart Guardian Smart Guardian to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Moden Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password / Hot-Key / Any Key Power on Function Support PS2 Mouse Button Click Power On Support Keyboard98 Power on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 19cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
