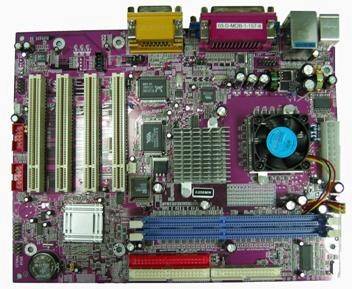

625EMP - Jetway
SPECIFICATION Processor VIA C3 Processor in EBGA packaging Onboard,Optimized for 133MHz Front Side Bus Frequency Chipset VIA VT8623 chip integrated a high performance North Bridge,advance hardware 2D/3D GUI engine VIA VT8235 High Bandwidth Vlink Client South Bridge Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Four 32-bit PCI Bus Master Slots (PCI 2.2) System Memory Support 2 Banks of DDR Module Sockets Support Max 2GByte ,2.5V DDR2000/DDR266 DDR SDRAM Support 8/16/32/64MB frame buffer On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device On Board AGP V.G.A Interal AGP 8X performance 8/16/32/64MB frame buffer using system memory 128 bit 2D/3D graphics engine 24bit true-color RAMDAC up go 250MHz pixel On Board 3D Audio Software Audio Controller With On Board 6-Channel CODEC Complete to AC97' Support 3D Surround & Positioning ,Full Duplex On Board LAN Realtek RT8100C PCI LAN controller chip 10/100 BASE T Fast Ethernet Support IEE802.3 Dual Channel DMA 10/100 BASE T Standard On Board Ultra I/O 4 X USB Connectors 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) 1 X VGA Connector On Board USB 6X USB 2.0 Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension Micro ATX Form Factor with 24.4cm X 19cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
