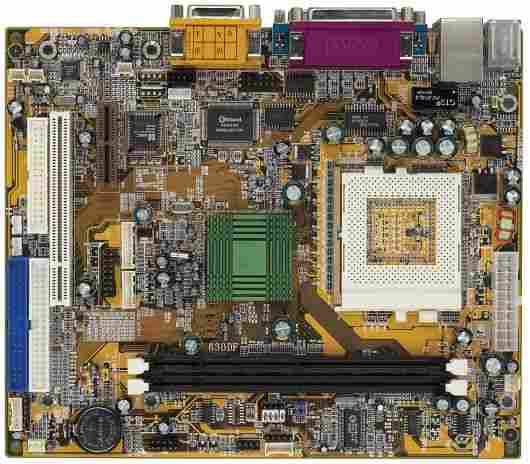

630DF - Jetway
FEATURES Support Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) Processor,VIA Cyrix MIII Optimized for 133MHz Front Side Bus Frequency SIS 630E Single-Chip Corelogic / Multimedia / Datacom chipset Winbond 83697HF I/O for Super I/O Interface Support ATA 66 On chip VGA Support Hardware DVD Playback Software Audio Controller With On Board CODEC Compliant to AC97' V2.1 Provide 10/100 PCI Fast Ethernet Support VCM SDRAM PC'99 Ready & PC'99 Colorful I/O Ports Design Support USB Controller & PS/2 Mouse , Standard IR (infrared) Functio Provide extra " three-wire" fans connectors PC Health Monitoring On Post Screen Jumperless Magic Install Flex ATX Formfactor Y2K Compliant ACPI Supporting For OS Directed Power Management Moden Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Power Button Ride (Instant off or Delay 4 second power off) SPECIFICATION Processor Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) Processor,optimized for 133MHz Front Side Bus Frequency VIA Cyrix MIII Support Chipset SIS 630E Single-Chip Corelogic / Multimedia /Datacom chipset Winbond 83697HF I/O for Super I/O Interface Build-in Integrated 128-bit 2D/3D Graphic Accelerator CPU Bus Frequency Support Jump Select 66.7/100/133 MHZ CPU Bus Frequency CPU Bus Frequency , Choose 66 / 75 / 83 / 95 / 100 / 112 / 117 / 124 / 133 / 140 / 150 MHZ in BIOS Setup CPU Ratio Selection For 2 , 2.5 , 3 , 3.5 , 4 , 4.5 , 5 , 5.5 , 6 , 6.5 , 7 , 7.5 , 8 in BIOS Setup Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Three 32-bit PCI Bus Master Slots One AMR (Audio/Modem Riser) Slot System Memory Support 2 Banks of SDRAM from 8MByte to 1GByte Virtual Channel Memory (VCM SDRAM) support Synchronous or Asynchronous Host / SDRAM Bus Frequency 2 X 168-pins DIMM Scockets On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-66 Bus Master IDE, Provide faster transfer rate up to 66M Bytes/s Support LS-120 / ZIP Device On Board AGP V.G.A Support AGP2.0 includeing 4x AGP data transfers Advanced HW Acceleration for DVD playback Ultra-AGPTM Architecture UMA Architecture with 2/4/8/16/32/64 MB System Memory Sharable as Display Memory Integrated Programmable 24-Bit Ture-Color RAMDAC up to 230 MHz Pixel Clock Support DirectX6 / DirectX7 & Software MPEG Playback VGA DRIVER Support Windows 95/98 and Windows NT 4.0 and Windows 2000 On Board 3D Audio Software Audio Controller With On Board CODEC Complete to AC97' V2.1 Support 3D Surround Support 3D Positioning Full Duplex Operation For Simultaneous Record And Playback Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack On Chip Lan Controller IEE802.3 10/100 BASE T Standards Bios Boot-up from LAN On Board Ultra I/O 4 X USB Connectors 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) 1 X 10/100 LAN Connector (630CF only) 1 X VGA Connector ITE Smart Guardian Smart Guardian to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Moden Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension Flex ATX Form Factor with 22.9cm X 19cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
