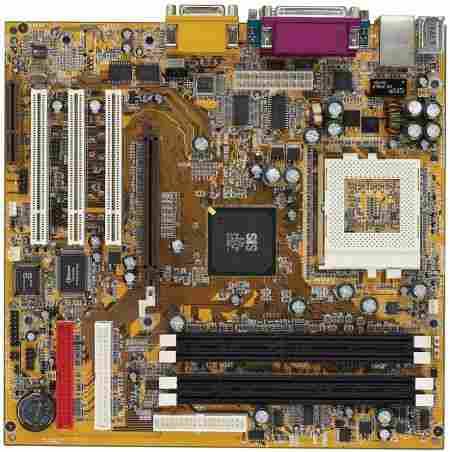

635CS - Jetway
FEATURES Support Socket 370 processor for Intel Tualatin PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA) Processor,Optimized for 133MHz Front Side Bus Frequency SIS 635 Single-Chip integrated a high performance North Bridge and South Bridge Winbond 83697HF I/O for Super I/O Interface Support ATA 100 Software Audio Controller With On Board CODEC Compliant to AC97' V2.1 Provide 10/100 PCI Fast Ethernet Support 168-pin DIMM and 184-pin DDR SDRAM (Can't Use DIMM And DDR SDRAM memory Together) PC'99 Ready & PC'99 Colorful I/O Ports Design Support USB Controller & PS/2 Mouse , Standard IR (infrared) Functio Provide extra " three-wire" fans connectors PC Health Monitoring On Post Screen Jumperless Magic Install Y2K Compliant ACPI Supporting For OS Directed Power Management Moden Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Power Button Ride (Instant off or Delay 4 second power off) STR (Suspend To RAM) function support Keyboard/USB Power On function support SPECIFICATION Processor Support Socket 370 processor for Intel Tualatin PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA) Processor,Optimized for 133MHz Front Side Bus Frequencyy Chipset SIS 635 Single-Chip Corelogic / Multimedia /Datacom chipset Winbond 83697HF I/O for Super I/O Interface CPU Bus Frequency Support Jump Select 66.7/100/133 MHZ CPU Bus Frequency CPU Bus Frequency , Choose One Step Add 1MHz From 66MHz Up to 160MHz in BIOS Setup (Frequency Magic Setting) CPU Ratio Selection For 2 , 2.5 , 3 , 3.5 , 4 , 4.5 , 5 , 5.5 , 6 , 6.5 , 7 , 7.5 , 8 in BIOS Setup Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Three 32-bit PCI Bus Master Slots One CMR (Communication Network Raiser) Slot System Memory 2 x 168-pin DIMM Sockets support PC133/PC100 SDRAM up to 1.0GB System Memory. 2 x 184-pin DDR Module Socket support PC2100/1600 DDR SDRAM up to 1.0GB System memory. Support STR (Suspend To RAM) function. On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device On Board 3D Audio Software Audio Controller With On Board CODEC Complete to AC97' V2.1 Support 3D Surround Support 3D Positioning Full Duplex Operation For Simultaneous Record And Playback Sound Driver for Windows 95 , Windows98 , Windows NT4.0 ,Windows 2000 Media Rack On Chip Lan Controller IEE802.3 10/100 BASE T Standards Bios Boot-up from LAN On Board Ultra I/O 4 X USB Connectors 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) 1 X 10/100 LAN Connector 1 X VGA Connector Winbond Hardware Doctor Smart Guardian to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Moden Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password on Function Support Power Button Ride (Instant off or Delay 4 second power off) Support STR (Suspend To RAM) function support Keyboard/USB Power On function support Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension Micro ATX Form Factor with 24.3cm X 24.4cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
