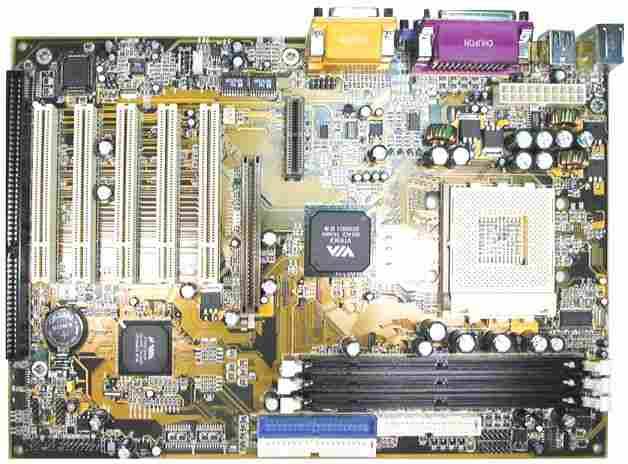

663AS - Jetway
FEATURES Support Socket-A for AMD Thunderbird /Duron TM uni-proccessor at 200MHz Front Side Bus with double data rate VIA Apollo KT133(VT8363) System controller and VT82C686A PCI to ISA bridge Support ATA 66 Extend AGP Slot Support 4X AGP Support VCM SDRAM PC'99 Ready & PC'99 Colorful I/O Ports Design Support USB Controller & PS/2 Mouse , Standard IR (infrared) Functio Provide extra " three-wire" fans connectors JumperLess PC Health Monitoring On Post Screen Magic Install Support Add CPU Voltage Select in BIOS setup.From +0.1V ~ +0.075V(one step 0.025V) BIOS Auto Detect CPU voltage Y2K Compliant ACPI Supporting For OS Directed Power Management Moden Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Support Power Button Ride (Instant off or Delay 4 second power off) SPECIFICATION Processor Support Socket-A for AMD Thunderbird /Duron TM uni-proccessor at 200MHz Front Side Bus with double data rate Chipset VIA Apollo KT133(VT8363) System controller and VT82C686A PCI to ISA bridge CPU Bus Frequency BIOS Adjust CPU/PCI Bus Frequence , Include 100/100MHZ , 105/35MHZ , 112/37MHZ Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency Expansion Slot Five 32-bit PCI Bus Master slots One 16-bit ISA Bus Slots One AMR Slot System Memory Support 64 bit DRAM memory Interface (66/100/133MHz) Support 3 Banks of SDRAM from 8Mbyte to 1.5GByte Main Memory Support SDRAM & Virtual Channel SDRAM (VCM SDRAM) 3 X 168-pins DIMM Scockets On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-66 Bus Master IDE, Provide faster transfer rate up to 66M Bytes/s Support LS-120 / ZIP Device AGP SLOT Support 4X AGP VGA Mode for 266MHz of AD and SBA signaling Pipelined split transaction long-burst transfers up to 1GB/sec On Board Hardware PCI sound chip Fully Compliant AC97 Analog I/O Component 48-Terminal TQFP package Multibit Converter Architecture for inproved S/N ratio greater than 90dB 16-Bit Stereo Full-Duplex Codec 4 Analog Line-Level Stereo Input High Quality CD Input With Ground Sense Stereo Line Level Output Hardware Sound Blaster Pro for Windows Dos box and real-mode DOS legacy compatibility Sound Driver for Windows 95/98 , Windows 2000 & Windows NT4.0 , Media Rack On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) VIA Health Monitor VIA Hareware Monitoring to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer Driver For Win95/98 and NT4.0 On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Moden Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 21cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
