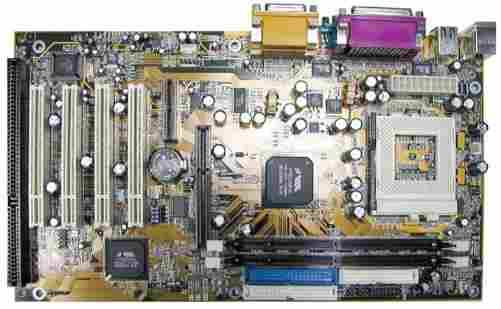

693AS - Jetway
FEATURES Support Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) Processor VIA 82C693A , 82C686A APOLLO Pro -133 AGPset Support 66/75/83/100/112/124/133/150 MHz Bus Frequency For CPU Host Clock Support ATA 66 Mode Support 2 Banks of DRAM From 8Mbyte to 1GByte Main Memory Support VCM SDRAM PC'99 Ready & PC'99 Colorful I/O Ports Design Support USB Controller & PS/2 Mouse , Standard IR (infrared) Functio Provide extra " three-wire" fans connectors PC Health Monitoring On Post Screen Frequency Magic Setting Magic Install Y2K Compliant ACPI Supporting For OS Directed Power Management Moden Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off (Windows 95 or Windows98) SPECIFICATION Processor Socket 370 processor for Intel PentiumO III Coppermine TM (FCPGA) , Celeron TM (FCPGA,PPGA) Processor,optimized for 133MHz Front Side Bus Frequency Chipset VIA 82C693A / 82C686A APOLLO Pro -133 Chipset CPU Bus Frequency Support Jumper Select 66.7/100/133 MHZ CPU Bus Frequency Default Selection CPU Bus Frequency , Choose One Step Add 1MHz From 66MHz Up to 160MHz in BIOS Setup (Frequency Magic Setting) Jumper Switch Selection CPU Ratio From 2X to 8X AGP Slot Support AGP VGA Card for 533Mbytes/sec data transfer rate and 66MHz Bus clock improve graphic function On Board 3D Audio Integraed 3D Positional Audio Controller Compliant to AC97' V2.1 Support 3D Surround Support 3D Positioning Full Duplex Operation For Simultaneous Record And Playback Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack Expansion Slot One AMR Slot Four 32-bit PCI Bus Master Slots One 16bit ISA Bus Slot System Memory Support 2 Banks of SDRAM From 8MByte to 1 GByte 2 X 168-pins DIMM Scockets (3.3V) Support EDO (66MHz Only) & SDRAM (66MHz/100MHz/133MHz) ,VCM DRAM Support ECC or Parity Check On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support " Ultra DMA 66 " Synchronous DMA Mode transfer rate up to 66M Bytes Support LS-120 / ZIP Device On Board Ultra I/O PC'99 Colorful I/O Ports Design 4 X USB Connectors 1 X Standard IR Connector (SIR) 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP Capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drives) 1 X PS2 Mouse / PS2 Keyboard Connector 2 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN Connector (For 693AS) 1 X LINE OUT Connector (For 993AS) 1 X MIC Connector 1 X Game Port Connector 1 X SPDIF IN And OUT Connector 1 X Panasonic Analog Audio CD Music line Connectors 1 X Sony Analog Audio CD Music line Connector On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring Remote Wake up RTC Alarm Wake up Support Software Suspend & Power off (Windows 95/98) Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support DMI , Green , P&P Function 2MByte Flash ROM Support Full Screen Logo Dimension ATX Form Factor with 30.5cm X 17cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
