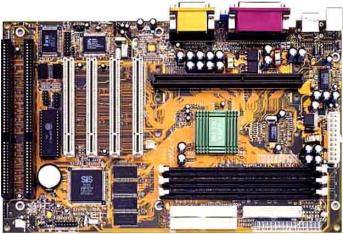

720AFR2 - Jetway
FEATURES Slot1 For Intel PentiumOII / III , Celeron O Processor , Optimized For 100 MHZ Front Side Bus Frequency SIS 620 / 5595 Chipset Build-in SIS 6326 High Performance AGP V.G.A On Board CMI8738 PCI 3D Sound Chip Support 3 X 168 Pin DIMM Sockets From 8Mbyte to 1.5GByte Main Memory Support SIS PCHEALTH MONITOR Support Ultra DMA 33 / 66 Mode Meets PC 99 Requirements Support USB Controller & PS/2 Mouse , Standard IR (infrared) Functio Provide extra " three-wire" fans connectors Support Keyboard Password Power on Function Jumpless Design (BIOS Setup CPU Bus Frequency and CPU Ratio) Y2K Compliant ACPI Supporting For OS Directed Power Management Moden Ring remote wake up CPU fan auto-stopping in suspend mode ATX power supply connector for Software Suspend & Show Down power off Power Button Over Ride RTC Alarm Wake up SPECIFICATION Processor Support Intel PentiumII (Katmai) Slot 1 Processor Support Intel PentiumOII Slot 1 Processor Support Intel CELERON Slot 1 Processor Chipset SIS 620 / SIS 5595 Chipset (Including 6326 AGP VGA Graphic Accelerator) On Board CMI8738 PCI 3D Sound Chip CPU Bus Frequency Support Jump Adjust 66.7/100 MHZ CPU Bus Frequency Default Selection BIOS Adjust CPU/SDRAM Bus Frequence , Include 66/66MHZ , 66/100MHZ , 75/75MHZ , 83/83MHZ , 95/95MHZ , 100/100MHZ , 112/112MHZ , 124/124MHZ BIOS Adjust CPU Ratio Selection For 2 , 2.5 , 3 , 3.5 , 4 , 4.5 , 5 , 5.5 , 6 , 6.5 , 7 , 7.5 , 8 Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Two 16-bit ISA Bus Slots Three 32-bit PCI Bus Master slots System Memory Support 3 Banks of SDRAM from 8Mbyte to 1.5GByte Main Memory 3 X 168-pins DIMM Scockets On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-33/66 Bus Master IDE, Provide faster transfer rate up to 33M/66M Bytes/s Support LS-120 / ZIP Device On Board 6326 AGP V.G.A Support Direct Memory Access Shared Memory Area From 2MB to 8MB Selected by BIOS SETUP Support 64 Bit Memory Data Bus Interface Integrated a High Performance and High Quality 3D Engine Support AGP Spec. 1.0 Compliant , 1XMode (66MHz) , 2XMode (133MHz) Integrated Programmable 24-Bit Ture-Color RAMDAC up to 240 MHz Pixel Clock On Board 3D Audio On Board CMI8738 PCI 3D Audio Chipset HRTF-Base 3D Positional Audio Support Direct Sound TM 3D And A3D Interface Support Rear Side Speakers , C3DX Positional Audio in 4CH Speaker Mode DLS-Base Wavetable Music Synthesizer , Supports Direct Music TM Professional Digital Audio Interface Supporting 24-Bit SPDIF IN And OUT Drivers Support AC3 O 5.1CH Interface MPU-401 , Daul Game Port , 16 Bit Full Duplex CODEC Support MP3 File Playback Sound Driver for Windows 95/98 , Windows 2000 & Windows NT4.0 , Media Rack On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire CPU FAN Connector 1 X LINE IN / LINE OUT Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Standard IR Connector (Infrared) 1 X VGA Connector SIS Health Monitor IIII SIS Health Monitor to Track CPU Temperature, Voltage, Fan speed , Monitoring your Computer Driver For Win95/98 and NT4.0 On Board USB 2 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Moden Ring remote wake up RTC Alarm Wake up CPU Fan Auto-Stopping in Suspend Mode Support Software Suspend & Power off (Windows95 or Windows98) Wake on LAN For OS Support Keyboard Password Power on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power support Efficient PWM switching power instead of traditional Linear Voltage Reqqulator to Prevern Power Component From Being Burned-out Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award Plug and Play and Green Function 2MByte Flash ROM Dimension ATX Form Factor with 30.5cm X 19cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
