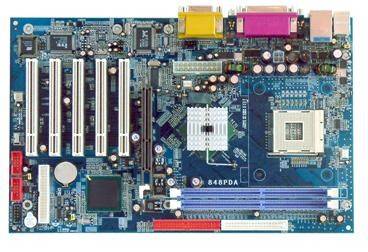

848PDA/848PDAP - Jetway
SPECIFICATION Processor Support Socket 478B processor for Intel PentiumO 4 (mPGA478) package processor ,Support 400/533/800MHz System Bus Frequency Could not support Pentium 4 Willanmette series CPU (400MHz FSB / 256 K Cache / CPU Vcore over 1.6V ) Chipset Intel 8848P memory Cotroller Hub (MCH) 82801DB (ICH4) chipset Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Five 32-bit PCI Bus Master Slots One 4/8X AGP Slot (Support 1.5V AGP card only) System Memory Support 2 X 184 pin DDR Module Socket Support Max 2GB DDR333/DDR400 SDRAM On Board Lan Controller (848PDAP Only) Realtek RT8100 PCI LAN controller chip IEEE 802.3 10/100 BASE T Standards BIOS Boot-up from LAN On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device On Board 3D Audio Software Audio Controller with Onboard 6-Channel CODEC Compliant to AC97' Support 3D urround & Positioning , Full Duplex On Board Ultra I/O On Board Winbond Chipset 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) On Board USB 6X USB Ports Connector support USB 2.0/1.1 Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password / Hot-Key / Any Key Power on Function Support PS2 Mouse Button Click Power On Support Keyboard98 Power on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery Support Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 19cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
