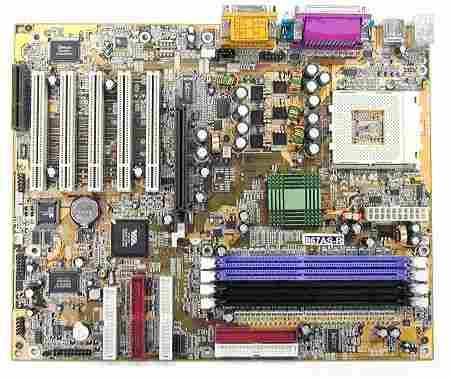

867AS - Jetway
FEATURES Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266MHz Front Side Bus with double data rate VIA Apollo KT266(VT8366) System controller and VT8233 High Bandwidth Vlink Client South Bridge Support ATA 100 Extend AGP Slot Support 4X AGP Support 168-pin SDRAM DIMM and 184-pin DDR DIMM (Can't Use DIMM And DDR SDRAM memory Together) PC'99 Ready & PC'99 Colorful I/O Ports Design Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function Provide extra " three-wire" fans connectors JumperLess Frequency Magic Setting PC Health Monitoring On Post Screen Magic Install 3-Phase Vcore Voltage to increase system stability BIOS Write Protect function to avoid Virus crash data SDRAM Asynchronous choice for PC133 DIMM (133MHz) when system clock is 100MHz to increase system performance BIOS Auto Detect CPU voltage Y2K Compliant ACPI Supporting For OS Directed Power Management Modem Ring remote wake up RTC alarm wake up Wake on LAN For OS Support software suspend & power off Support Power Button Ride (Instant off or Delay 4 second power off) SPECIFICATION Processor Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266MHz Front Side Bus with double data rate Chipset VIA Apollo KT266(VT8366) System controller and VT8233 High Bandwidth Vlink Client South Bridge CPU Bus Frequency CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 200MHz in BIOS Setup (Frequency Magic Setting) Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency Expansion Slot Five 32-bit PCI Bus Master slots One CMR (Communication Network Raiser) Slot System Memory 2 x 168-pin DIMM Sockets support PC133/PC100 SDRAM up to 1.0GB System Memory. 2 x 184-pin DDR Module Socket support PC2100/1600 DDR SDRAM up to 1.0GB System memory. On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device AGP SLOT Support 4X AGP VGA Mode for 266MHz of AD and SBA signaling Pipelined split transaction long-burst transfers up to 1GB/sec On Board 3D Audio Software Audio Controller With On Board CODEC Complete to AC97' Support 3D Surround Support 3D Positioning Full Duplex Operation For Simultaneous Record And Playback Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) VIA Health Monitor VIA Hareware Monitoring to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer Driver For Win95/98 and NT4.0 On Board USB 6 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 24.4cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
