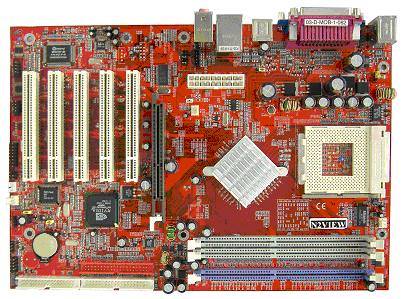

N2VIEW - Jetway
SPECIFICATION Processor Support Socket 462for AMD AthlonXP/Athlon /Duron TM uni-proccessor at 200/266/333MHz Front Side Bus with double data rate Chipset nVIDIA nForce2 IGP North Bridge nVIDIA nForce2 MCP South Bridge CPU Bus Frequency CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 232MHz in BIOS Setup (Frequency Magic Setting) MagicTwin Connectivity USB-to-PS/2 converter manages I/O devices and assigned user access 2-User Function With PS/2 Y-Cable support 2-Kerboard,2-Mouse function Bundle MagicTwin Application Sofeware support single PC system runs up to two stations in WindowsXP Operation System Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency Expansion Slot Three 32-bit PCI Bus Master slots One 8X AGP slot System Memory 3 x 184-pin DDR Module Socket support Dual Channel DDR266/DDR333 DDR SDRAM up to 3GB System memory. On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/s Support LS-120 / ZIP Device On Board LAN nVIDIA MAC with Media Independent Interface(MII) for corperate 100/10 BaseT Fast Ethernet/Ethernet Support IEEE 802.3 Dual Channel DMA On Board VGA 256 bit 2D3D graphics accelerator Intergrated GeForce4 MX Graphics Processing Unit Integrated TV-Out encoder through external bracket Support 1920 x 1440 @ 75Hz AGP SLOT Support 8X AGP VGA Mode for 266MHz of AD and SBA signaling Pipelined split transaction long-burst transfers up to 2GB/sec 1.5V AGP Card Only On Board 3D Audio Software Audio Controller with Onboard 6-Channel CODEC Compliant to AC97' Support 3D urround & Positioning , Full Duplex On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) Winbond Hareware Doctor Winbond Hareware Doctor to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer CPU overhead protect Auto shut down power supply when CPU over heat to protect CPU On Board USB 5 X USB 2.0 Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Powre Fail Recovery support Power Supply Support 20-pin ATX power supply (ATX-PW) Support ATX12V Power Supply BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 21cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
