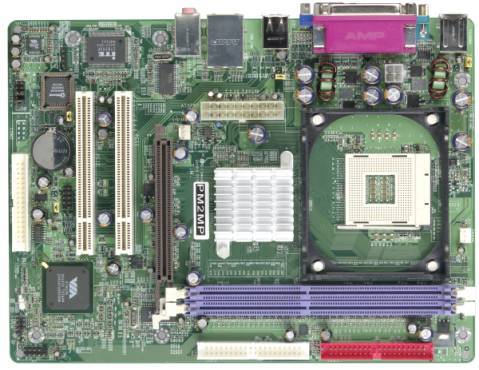

PM2MP - Jetway
SPECIFICATION Processor Support Socket 478B processor for Intel PentiumO 4 (mPGA478) package processor ,Support 400/533MMHzHz System Bus Frequency Support Hyper Threading CPU/Prescott CPU Chipset VIA P4M266A Memory Controller Hub (MCH) VIA 8235 South Bridge Magic Setting Support CPU Front Side Bus step by step setting in BIOS SETUP let users have many choice when use over-clock function Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Two 32-bit PCI Bus Master Slots One 4X AGP Slot (Support 1.5V AGP card only) System Memory 2 x 184-pin DDR Module Socket support DDR200/DDR266 DDR SDRAM up to 2.0GB System memory. On Board AGP V.G.A Integrated 2D/3D Graphic Engine Support 8/16/32MB frame buffer Resolution up to 1920x1440 256/32K/64K/16M color @75Hz NI 250MHz RAMDAC on chip On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/s Support LS-120 / ZIP Device On Board Lan Controller IEEE802.3 10/100 BASE T Standards BIOS Boot-up from Lan On Board 3D Audio Software Audio Controller With On Board 6-Channel CODEC Compliant to AC97' Support 3D Surround & Positioning, Full Duplex On Board Ultra I/O On Board Winbond Chipset 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) 1 X VGA Connector On Board USB 6 X USB 2.0/1.1 Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password / Hot-Key / Any Key Power on Function Support PS2 Mouse Button Click Power On Support Keyboard98 Power on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension Micro ATX Form Factor with 24.5cm X18cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
