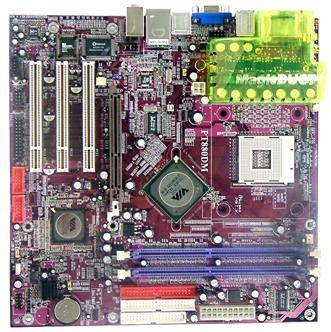

PM800DM/PM800DMS - Jetway
SPECIFICATION Processor Support Socket 478B processor for Intel PentiumO 4 (mPGA478) package processor ,Support 400M/533/800MHz System Bus Frequency Prescott CPU Support Chipset VIA PM800 Memory Controller Hub (MCH) VIA 8237 South Bridge Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Three 32-bit PCI Bus Master Slots One AGP 8X Slot (1.5V Only) System Memory 2 x 184-pin DDR Module Socket support DDR266/DDR333/DDR400 DDR SDRAM up to 2.0GB System memory On Board LAN (P800DMS) Standard MII interface to external PHYceiver 10/100MHz full and half duplex operation On Board VGA VGA memory share 16~64M from system memory 24-bit true-color RAMDAC up to 250MHz pixed rate Resolution up to 1920 x 1440 Magic Duct Support Enhanced thermal solution to protect MOSFET from burnt out On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/s Support LS-120 / ZIP Device On Serial ATA Support 2 Serial ATA Port provide 150MB/s (Max.) Data tranfer rate Support RAID0,RAID1 function On Board 3D Audio Software Audio Controller With On Board 6-Channel CODEC Compliant to AC97' Support 3D Surround & Positioning, Full Duplex On Board Ultra I/O On Board Winbond Chipset 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Standard IR Connector (Infrared) On Board USB 8 X USB2.0 Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password / Hot-Key / Any Key Power on Function Support PS2 Mouse Button Click Power On Support Keyboard98 Power on Function Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 24.4cm X 24.4cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
