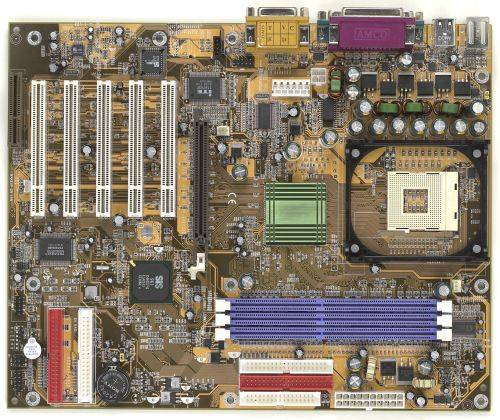

S446/S446R - Jetway
SPECIFICATION Processor Support Socket 478B processor for Intel PentiumO 4 (mPGA478) package processor ,Support 400MHz System Bus Frequency Chipset SiS 645 Host/Memory Controller SiS 961 HyperZip Media I/O chip On Board Realteck RT100 PCI lan chip (S445L only) CPU Bus Frequency CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 200MHz in BIOS Setup (Frequency Magic Setting) Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And Ratio Expansion Slot Five 32-bit PCI Bus Master Slots One CNR Slot One 4X AGP Slot System Memory Support 3 X 184 pin DDR DIMM Socket Support Max 3GB 2.5V unbuffered DDR SDRAM Support up to 2 un-buffer DIMM DDR333 or up to 3 un-buffer Double-sided DIMM On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device PROMISE IDE RAID (S446R Only) Extra 2 channel IDE Interface Support ATA100,RAID0 (to increase transfer rate) or RAID1 (data protection) On Board 3D Audio Software Audio Controller With On Board CODEC Complete to AC97' Support 3D Surround Support 3D Positioning Full Duplex Operation For Simultaneous Record And Playback Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack On Board Ultra I/O On Board Winbond Chipset 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 3 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) Winbond Hareware Doctor Winbond Hareware Doctor to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer Driver For Win95/98 On Board USB 4 X USB Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Support Suspend to DISK Wake on LAN For OS Support Auto Power ON After Power Fail Function Support Keyboard Password / Hot-Key / Any Key Power on Function Support PS2 Mouse Button Click Power On Support Keyboard98 Power on Function Support Power Button Ride (Instant off or Delay 4 second power off) STR (Suspend To RAM) support Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 24.3cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
