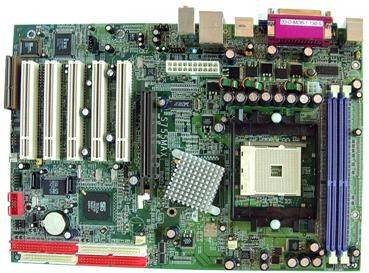

S755MAX - Jetway
Processor 64bit AMD Athlon64 754-Pin package utilizes FCPGA package processor,Support CPU Frequency 800MHz Chipset SiS 755 K8HT AGP/MuTIOL Bridge (North Bridge) Chipset SiS 963L MuTIOL 1G Media I/O (South Bridge Chipset) Expansion Slot Five 32-bit PCI Bus Master slots One CNR Slot One 8X AGP Slot System Memory 2 x 184-pin DDR Module Socket support DDR266/DDR333/DDR400 DDR SDRAM up to 2GB System memory. On Chip Lan Controller Intergrated LAN MAC with LAN PHYceiver Support 10/100 Mb/sec data transfer rate On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s Support LS-120 / ZIP Device On Board 3D Audio Software Audio Controller with Onboard 6-Channel CODEC Compliant to AC97' Support 3D urround & Positioning , Full Duplex Serial ATA Controller Support 2 Serial ATA Port provide 150MB/s (Max) Data transfer rate Support RAID0,RAID1,RAID0+1 function. On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) ITE Winbond Hareware Doctor to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer Driver For Win95/98 On Board USB 6 X USB2.0 Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support Power Supply Support 20-pin ATX power supply (ATX-PW) BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension Micro ATX Form Factor with 30.5cm X 21cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
