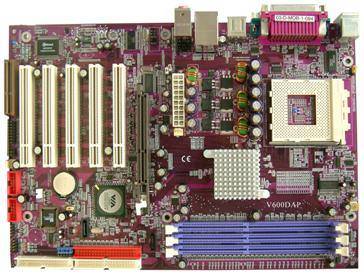

V600DA/V600DAP - Jetway
SPECIFICATION Processor Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266/333/400MHz Front Side Bus with double data rate Chipset VIA Apollo KT600 System controller and VT8237 High Bandwidth Vlink Client South Bridge CPU Bus Frequency CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 232MHz in BIOS Setup (Frequency Magic Setting) Jumpless Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency Expansion Slot Five 32-bit PCI Bus Master slots One AGP Slot support AGP 8X System Memory 3 x 184-pin DDR Module Socket support DDR266/DDR333/DDR400 DDR SDRAM up to 3GB System memory. On Board IDE Support 2 X IDE Connectors for up to 4 IDE Drives Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/s Support LS-120 / ZIP Device Serial ATA Support 2 Serial ATA Port provide 150MB/s (Max),Data transfer rate Support RAID0,RAID1 function On Board LAN Standard MII interface to external PHY ceiver 10/100 MHz full and half duplex operation AGP SLOT Support 8X AGP VGA Mode for 266MHz of AD and SBA signaling Pipelined split transaction long-burst transfers up to 2GB/sec 1.5V AGP Card Only On Board 3D Audio Software Audio Controller with Onboard CODEC Compliant to AC97' Support 6-channel 3D Surround & Positioning , Full Duplex On Board Ultra I/O 2 X Serial Ports (16550 Fast UART Compatible) 1 X Parallel Port (EPP and ECP capabilities) 1 X Floppy Disk Connector (Supports 2 Floppy Drivers) 1 X PS2 Mouse Connector 1 X Keybord Cnnector 2 X Three Wire FAN Connector (Include CPU FAN) 1 X LINE IN / LINE OUT / Microphone Connector 1 X Game Port Connector (Support Two Joysticks) 2 X Analog Audio CD Music line Connectors (different connector) 1 X Consumer IR Connector 1 X Standard IR Connector (Infrared) Winbond Hareware Doctor Winbond Hareware Doctor to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer On Board USB 6 X USB 2.0 Ports Connector Support USB Keyboard & USB Mouse Power Saving ACPI/APM Power Management Modem Ring remote wake up RTC Alarm Wake up Support Software Suspend & Power off Wake on LAN For OS Support Power Button Ride (Instant off or Delay 4 second power off) Power Fail Recovery support Power Supply Support 20-pin ATX power supply (ATX-PW) Support ATX12V Power Supply BIOS Award BIOS , Support Green function, Plug and Play Function 2MBit Flash ROM Dimension ATX Form Factor with 30.5cm X 21cm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : JETWAY Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
