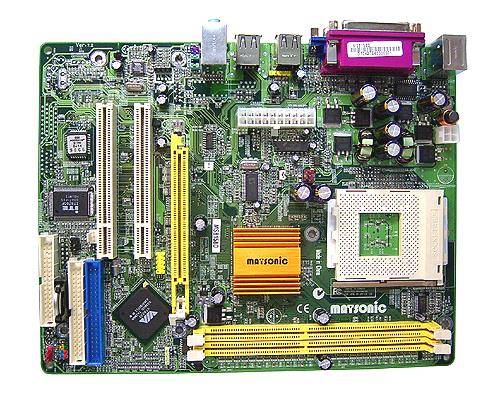

MS8158D - MATSONIC
MS8158D VIA KM266 chipset Socket A Processor Based MATX Motherboard With VGA/Audio/USB 2.0 On Board SPECIFICATION Processor Supports Socket A (Socket-462) for AMD® Athlon™ / Athlon™ XP / Duron™ processor Supports 600MHz up to 2600+ MHz processor and faster Chipset VIA ProSavageDDR KM266 (VT8375/VT8235) two chip AGPset Supports 200/266 MHz Front Side Bus V-Link 266MB/s high bandwidth North/South Bridge interconnect Memory Supports two 184-pin DDR DIMM maximum size up to 2GB Graphics Adapter Slot Supports AGP 2.0 Including 1X/2X/4X AGP Data Transfers Embedded 3D Ultra AGP VGA S3 Graphics ProSavage8™ Integrated Graphics core Shared memory architecture allows a maximum of 32 MB main memory to act as frame buffer Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Audio Supports built-in AC97 Digital Audio. Dual full-duplex Direct Sound channels. H/W Sound Blaster Pro DOS Legacy compatibility. FM Synthesis for legacy compatibility. Supports game or MIDI port. Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering Bus Architecture One AGP (Accelerated Graphics Port) 4x slot Two PCI 2.2 32-bit Master PCI Bus slots I/O Interface PS/2 Mini-DIN mouse & keyboard ports Six USB ports (four backpanel ports, onboard USB headers providing two extra ports) One 25-pin female printer port One serial port One VGA port Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 System BIOS 2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU Fully compliant to PC'97 and PC'98 Spec Form Factor Four layers, 30.4 cm x 22.0 cm ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
