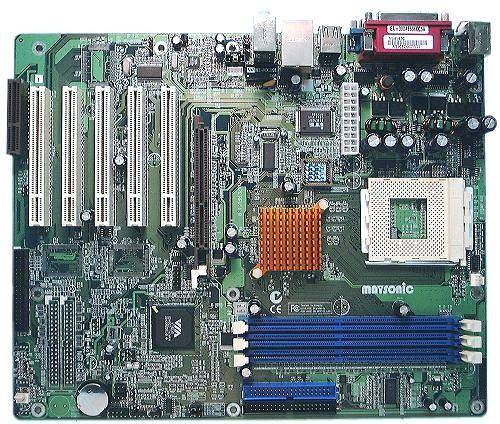

MS8167C - MATSONIC
MS8167C VIA KT333CF chipsets Socket A Processor Based ATX Motherboard With Audio/Lan/USB 2.0 On Board SPECIFICATION Processor Supports Socket A (Socket-462) for AMD® Athlon™ / Athlon™ XP / Duron™ processor Supports 600MHz up to 3000+ MHz processor and faster Chipset VIA Apollo KT333CF(KT333CF/VT8235) two chip AGPset Supports 200/266/333 MHz Front Side Bus 8x V-Link 533MB/s high bandwidth North/South Bridge interconnect Memory Supports three 184-pin DDR DIMM maximum size up to 3GB. Support DIMMs of DDR333/DDR266/DDR200. Graphics Adapter Slot Supports AGP 4x mode Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio 6 (5.1) channels audio output capability (compliant with AC'97 2.2 specifications) Intel® AC97(Rev 2.2) compatible, meeting Microsoft® PC2001 requirements Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 100MBps with bus mastering Bus Architecture One CNR (Communication Network Riser) One AGP (Accelerated Graphics Port) Five PCI 2.2 32-bit Master PCI Bus slots I/O Interface PS/2 Mini-DIN mouse & keyboard ports Six USB ports (four backpanel ports, onboard USB headers providing two extra ports) One 25-pin female printer port Two serial port Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 System BIOS 2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU Fully compliant to PC'97 and PC'98 Spec Form Factor Four layers, 30.4 cm x 24.4 cm ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
