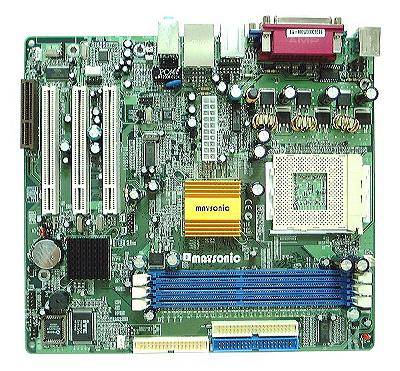

MS8328E - MATSONIC
MS8328E SIS 740 chipset Socket A Processor Based Micro ATX Motherboard With VGA/Audio/Lan On Board SPECIFICATION Processor Supports Socket A (Socket-462) for AMD® Athlon™ / Athlon™ XP / Duron™ processor Supports 600MHz up to 2600+ MHz processor and faster Chipset SIS 740 North Bridge and SIS 962L South Bridge chipsets. Supports 200/266 MHz Front Side Bus MuTIOL® Delivering 533MB/s Bandwidth Memory Supports three 184-pin DDR DIMM maximum size up to 1.5GB Embedded 3D Ultra AGP VGA Embeded 256-bit 3D AGP Graphics Accelerator with 64MB frame buffer Supports AGP 4X 266 MHz mode up to 2GB/s bandwidth Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio AC97 Codec on board to provide software audio solution 4CH DAC, applicable for leading motherboard chipsets. 48 LQFP package(pin to pin compatible with 2-channel CODEC) and 24-lead TSSOP package. Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering Bus Architecture 3 PCI Slots 1 CNR Slot I/O Interface PS/2 Mini-DIN mouse & keyboard ports Six USB ports (Four backpanel ports, onboard USB headers providing two extra ports) One 25-pin female printer port One serial port One vga port Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 One game port Form Factor Four layers, 24.4 cm x 22.0 cm Micro ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
