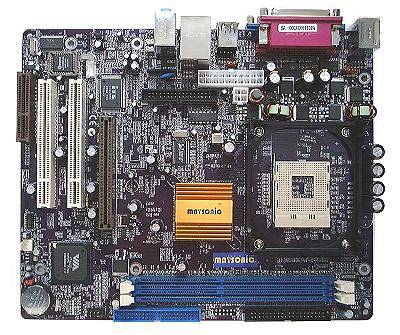

MS9158E+ - MATSONIC
MS9158E+ VIA P4M266A chipset Socket 478 Processor Based Micro ATX Motherboard With VGA/Audio/Lan On Board SPECIFICATION Processor Support Socket 478 for Intel(R) Pentium(R) 4 1.5GHz~3.06GHz or faster Processor Support Intel(R) Hyper-Threading Technology CPU 400/533MHz system interface speed Chipset VIA P4M266A North Bridge and VT8235 South Bridge chipsets. Memory Supports two 184-pin DDR DIMM maximum size up to 2GB Graphics Adapter Slot Supports AGP 2.0 Including 1X/2X/4X AGP Data Transfers Embedded 3D Ultra AGP VGA S3 Graphics ProSavage8? Integrated Graphics core Shared memory architecture allows a maximum of 32 MB main memory to act as frame buffer Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio Supports built-in AC97 Digital Audio. Dual full-duplex Direct Sound channels. H/W Sound Blaster Pro DOS Legacy compatibility. FM Synthesis for legacy compatibility. Supports game or MIDI port. Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering Bus Architecture One CNR slot for Soft modem riser only Two 32-bit PCI slots with full master sharing controller (Rev 2.2 compliant) One AGP4x slot I/O Interface PS/2 Mini-DIN keyboard and mouse ports Six USB ports (four backpanel ports, onboard USB headers providing two extra ports) One D-SUB 9-pin male serial ports One D-SUB 25-pin female Printer port Audio Line-out, Line-in and Mic-in jacks Form Factor 244mm x 200mm, 4 Layers Micro ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
