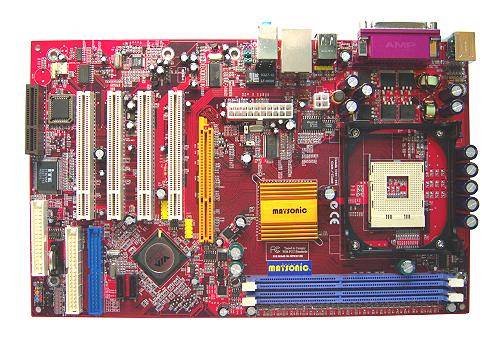

MS9167C - MATSONIC
MS9167C VIA PT800+VT8237 chipsets Socket 478 Processor Based ATX Motherboard With Audio/Lan/USB 2.0 On Board SPECIFICATION Processor Support Socket 478 for Intel(R) Pentium(R) 4 1.5GHz~3.2GHz or faster Processor Support Intel(R) Hyper-Threading Technology CPU 400/533/800MHz system interface speed Chipset VIA PT800 North Bridge and VT8237 South Bridge chipsets. 8X V-Link 533MB/s high bandwidth North/South Bridge interconnect Memory Supports two 184-pin DDR DIMM maximum size up to 2GB Support DIMMs of DDR400 / DDR333 / DDR266 Graphics Adapter Slot Supports AGP 3.0 Including 2X/4X/8x AGP Data Transfers . Support Maximum AGP interface bandwidth 2.1GB/s Serial ATA Ports Supports 2-ports S-ATA running at 150 MB/s Fully compatible with soon-to-be-released serial ATA HDD, CDROM and other cutting edge devices Supports the hot plug function and better cabling Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio Supports built-in AC97 Digital Audio. Dual full-duplex Direct Sound channels. H/W Sound Blaster Pro DOS Legacy compatibility. FM Synthesis for legacy compatibility. Supports game or MIDI port. Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 100MBps with bus mastering Bus Architecture One CNR slot for Soft modem riser only Four 32-bit PCI slots with full master sharing controller (Rev 2.2 compliant) One AGP 8x slot I/O Interface PS/2 Mini-DIN keyboard and mouse ports Eight USB ports (four backpanel ports, onboard USB headers providing four extra ports) One D-SUB 9-pin male serial ports One D-SUB 25-pin female Printer port Audio Line-out, Line-in and Mic-in jacks System BIOS 2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU Fully compliant to PC'97 and PC'98 Spec Form Factor 304mm x 190mm, 4 Layers ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
