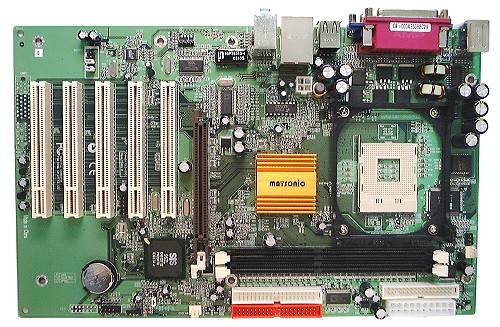

MS9367E - MATSONIC
MS9367E SIS 650GX chipset Socket 478 Processor Based ATX Motherboard With VGA/Audio/Lan On Board SPECIFICATION Processor Support Socket 478 for Intel(R) Pentium(R) 4 1.5GHz~3.06GHz or faster Processor 400/533MHz system interface speed Chipset SIS 650GX North Bridge + SIS 962L South Bridge chipsets MuTIOL® Delivering 533MB/s Bandwidth Memory Supports two 184-pin DDR DIMM maximum size up to 2GB Support DIMMs of DDR266/DDR200 Graphics Adapter Slot Support AGP4X Interface Embedded 3D Ultra AGP VGA Integrated Real256TM 2D/3D Graphics Accelerator Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio AC97 Codec on board to provide software audio solution 6CH DAC, applicable for leading motherboard chipsets. 48 LQFP package(pin to pin compatible with 2-channel CODEC) and 24-lead TSSOP package. Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering Bus Architecture One AGP4x slot Five 32-bit PCI slots with full master sharing controller (Rev 2.2 compliant) One CNR slot I/O Interface PS/2 Mini-DIN keyboard and mouse ports Six USB ports (four backpanel ports, onboard USB headers providing two extra ports) One D-SUB 9-pin male serial ports One D-SUB 15-pin female VGA port One D-SUB 25-pin female Printer port One RJ45 LAN Port Audio Line-out, Line-in and Mic-in jacks Form Factor 304mm x 190mm, 4 Layers ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
