MS9387E - MATSONIC

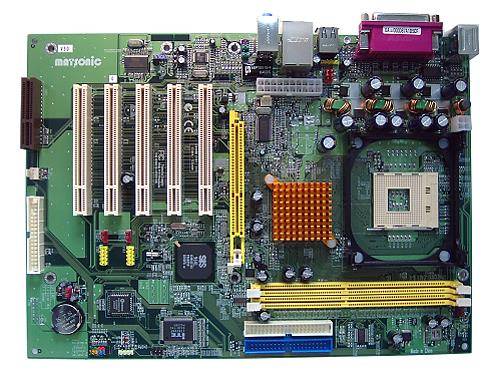

MS9387E SIS 661FX chipset Socket 478 Processor Based ATX Motherboard With VGA/Audio/Lan On Board SPECIFICATION Processor Support Socket 478 for Intel® Pentium® 4 1.5GHz~3.2GHz or faster Processor Support Intel® Prescott / Hyper-Threading Technology CPU 400/533/800MHz system interface speed Chipset SIS 661FX North Bridge and SIS 964L South Bridge chipsets. MuTIOL® Delivering 1GB/s Bandwidth Memory Supports two 184-pin DDR DIMM maximum size up to 2GB Support DIMMs of DDR400/DDR333/DDR266 Graphics Adapter Slot Supports AGP 3.0 Including 2X/4X/8x AGP Data Transfers . Support Maximum AGP interface bandwidth 2.1GB/s. Embedded 3D Ultra AGP VGA High performance 256Bit 3D/128Bit 2D Graphic Engine Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio AC97 Codec on board to provide software audio solution 6CH DAC, applicable for leading motherboard chipsets. 48 LQFP package(pin to pin compatible with 2-channel CODEC) and 24-lead TSSOP package. Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering Bus Architecture One CNR slot for Soft modem riser only Five 32-bit PCI slots with full master sharing controller (Rev 2.2 compliant) One AGP 8x slot I/O Interface PS/2 Mini-DIN keyboard and mouse ports Eight USB ports (four backpanel ports, onboard USB headers providing four extra ports) One D-SUB 15-pin female VGA port One D-SUB 9-pin male serial ports One D-SUB 25-pin female Printer port Audio Line-out, Line-in and Mic-in jacks Form Factor 304mm x 220mm, 4 Layers ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
