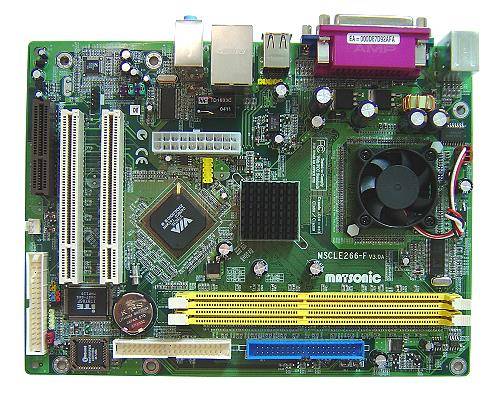

MSCLE266-F - MATSONIC
MSCLE266-F VIA CLE266 chipset Socket 370 Processor Based Flex ATX Motherboard With VGA/Audio/Lan/USB 2.0 On Board SPECIFICATION Processor Built-in VIA C3 2000+ CPU Chipset VIA CLE266 (VT8623/VT8235) two chip AGPset Supports 66/100/133 MHz Front Side Bus V-Link 266MB/s high bandwidth North/South Bridge interconnect Memory Supports two 184-pin DDR DIMM maximum size up to 2GB. Support DIMMs of DDR200/DDR266. Embedded 3D Ultra AGP VGA Integrated UniChrome™ 2D/3D graphics Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio AC97 Codec on board to provide software audio solution 6CH DAC, applicable for leading motherboard chipsets. Extensive jack-detection capability Precise and advanced impedance sensing Support 2 stereo microphones recording and playback Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering Bus Architecture One CNR (Communication Network Riser) Two PCI 2.2 32-bit Master PCI Bus slots I/O Interface PS/2 Mini-DIN mouse & keyboard ports Six USB ports (four backpanel ports, onboard USB headers providing two extra ports) One 25-pin female printer port One serial port One VGA port Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK Form Factor Four layers, 23.0 cm x 17.0 cm Flex ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
