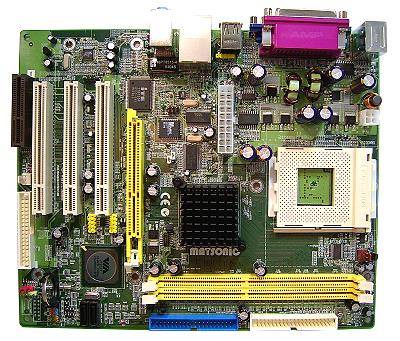

MSKM400A-M - MATSONIC
MSKM400A-M VIA KM400A chipset Socket A Processor Based Micro ATX Motherboard With VGA/Audio/Lan On Board SPECIFICATION Processor Supports Socket A (Socket-462) for AMD® Athlon™ / Athlon™ XP / Duron™ processor Supports 600MHz up to 3200+ MHz processor and faster Chipset VIA UniChrome KM400A + 8237 two chip AGPset Supports 266/333/400 MHz Front Side Bus 8X V-Link 533MB/s high bandwidth North/South Bridge interconnect Memory Supports two 184-pin DDR DIMM maximum size up to 2GB. Support DIMMs of DDR400/333/266. Graphics Adapter Slot Supports AGP 3.0 Including 4X/8x AGP Data Transfers . Support Maximum AGP interface bandwidth 2.1GB/s. Embedded 3D Ultra AGP VGA Integrated UniChrome™ 2D/3D graphics Shared memory architecture allows a maximum of 64 MB main memory to act as frame buffer Serial ATA Ports Supports 2-ports S-ATA running at 150 MB/s Fully compatible with soon-to-be-released serial ATA HDD, CDROM and other cutting edge devices Supports the hot plug function and better cabling. Embedded USB2.0 480 Mbps data capacity Backwards compatible with USB 1.1 Compliant with Intel!|s Enhanced Host Controller Interface Specification Revision 0.95 Embedded LAN on board 10/100Mbps Fast Ethernet LAN on board Supports IEEE 802.3 and 802.3u standards Fully compliant ANSI X3.263 TP-PMD physical sub-layer Audio AC97 Codec on board to provide software audio solution 6CH DAC, applicable for leading motherboard chipsets. Extensive jack-detection capability Precise and advanced impedance sensing Support 2 stereo microphones recording and playback Two Ultra DMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 133MBps with bus mastering Bus Architecture One CNR (Communication Network Riser) One AGP (Accelerated Graphics Port) 8x slot Three PCI 2.2 32-bit Master PCI Bus slots I/O Interface PS/2 Mini-DIN mouse & keyboard ports Eight USB ports (four backpanel ports, onboard USB headers providing four extra ports) One 25-pin female printer port One serial port One VGA port Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 Form Factor Four layers, 24.4 cm x 20.0 cm Micro ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MATSONIC Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
