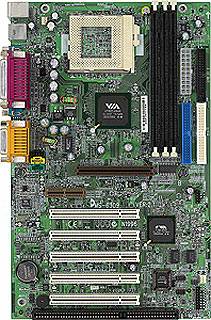

6309 (MS-6309 v2.1B)- MicroStar
Special Features D-LED Fuzzy Logic 3 Live BIOS CPU Socket 370 for Intel® Pentium® III (FC-PGA) / Celeron™ Processor. Supports 300MHz-1.13GHz processor Chipset VIA® 694X chipset. (North-Bridge 510 BGA) Pentium® III FSB @133MHz AGP 4x and PCI Advanced high performance memory controller. Support PC100/133 SDRAM, VCM, ESDRAM technology. VIA® VT82C686B chipset. (South-Bridge 352 BGA) Enhanced Power Management Features. Integrated Super I/O (FDC/LPT/COM 1&2/IR). Dual bus Master IDE Ultra DMA 33/66/100. DirectSound AC97 Audio, ACPI FSB 66/100/133MHz FSB Main Memory Three 168-pin unbuffered DIMM using six memory banks. Support a maximum memory size of 1.5GB. Supports 3.3v SDRAM DIMM. Slots One AGP 4x slot. One AMR (Audio Modem Riser) Five 32-bit Master PCI bus slots and one ISA slot. Supports 3.3v/5v PCI bus interface. On-Board IDE An IDE controller on the VIA VT82C686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100 operation modes. Can connect up to four IDE devices. Audio Chip Integrated DirectSound AC97 Audio. On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B), 1 Parallel port supports SPP/EPP/ECP mode. 4 USB ports. 1 IrDA connector for SIR/ASKIR/HPSIR. 1 Audio/Game port. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension ATX Form Factor. 30.5cm x 19.2cm Mounting 6 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
