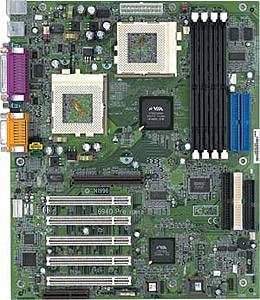

694D PRO@IR (MS-6321 v1.0)- MicroStar
Special Features D-LED Promise IDE RAID (Available in 694D PRO@IR) IEEE 1394 (Available in 694D PRO@IR) CPU Dual Socket 370 for Intel® Pentium® III (FC-PGA) / Celeron™ Processor. Supports 500MHz-1GHz processor Chipset VIA® 694DP chipset. (North-Bridge 510 BGA) PentiumR III FSB @133MHz AGP 4x and PCI Advanced high performance memory controller. Support PC100/133 SDRAM, VCM, ESDRAM technology. VIA® VT82C686B chipset. (South-Bridge 352 BGA) Advanced Power Management Features. Dual bus Master IDE Ultra DMA 33/66/100. DirectSound AC97 Audio FSB 66/100/133MHz FSB 1394 PHY Controller 694D PRO@IR TI® TSB41LV02 PHY Digital-to-Analog Transceiver. Supports up to Two 1394/1394A v 2.0 Compatible Data Channels. 1394 Link Layer Controller 694D PRO@IR TI® TSB12LV26 1394 Link Layer Host Controller. IEEE 1394, 1394 OHCI v1.0 & 1394A v2.0 compatible. Supports 100/200/400 Mbps High Throughput. 3.3V & 5V Operation for PCI to 1394 Interface. Promise IDE RAID 694D PRO@IR Dual bus master IDE Ultra DMA 100. Up to 133MB/sec burst transfer rate (through PCI bus). Main Memory Four 168-pin unbuffered DIMM using eight memory banks. Support a maximum memory size of 2GB. ECC (1-bit Error Code Correction) Supports 3.3v SDRAM DIMM. Slots One AGP 4x slot. One CNR (Communication Network Riser) Five 32-bit Master PCI bus slots and one ISA slot. Supports 3.3v/5v PCI bus interface. On-Board IDE An IDE controller on the VIA VT82C686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices. Audio Chip Integrated DirectSound AC97 Audio. On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B), 1 Parallel port supports SPP/EPP/ECP mode. 4 USB ports. 1 IrDA connector for SIR/ASKIR/HPSIR. 1 Audio/Game port. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension ATX Form Factor. Mounting 6 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
