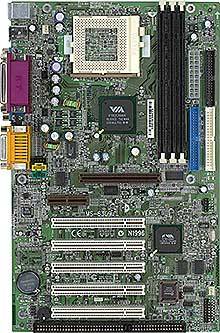

694T PRO (MS-6309 v5.0)- MicroStar
Special Features D-LED Live BIOS Fuzzy Logic 3 USB PC 2 PC D-Bracket CPU Support Socket 370 for the whole series of new generation Intel® Pentium® III(FC-PGA / FC-PGA2), Celeron™ and VIA® Processor. Supports 500MHz to 1.2GHz Chipset VIA® 694X / 694T chipset. (North-Bridge 510 BGA) 66/100/133MHz FSB AGP 4x and PCI plus advanced ECC memory controller PC100/133 SDRAM, VCM and ESDRAM VIA® VT82C686B chipset. (South-Bridge 352 BGA) Advanced Power Management. Integrated super I/O (FDC, LPT, COM 1&2 and IR) DirectSound AC'97 audio Dual bus master IDE ultra DMA 33/66 ACPI FSB 66/100/133 MHz FSB Main Memory Three 168-pin unbuffered DIMM Maximum memory size of 1.5GB Supports 3.3v SDRAM DIMM Slots One AMR (Audio Modem Riser) slot One AGP 4X slot Five 32-bit master PCI bus slots and one 16-bit ISA bus slot (shared) Supports 3.3v/5v PCI bus interface On-Board IDE An IDE controller on the VIA VT82C686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices. Audio Chip integrated. AC'97 On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes 2 Serial ports (COM A + COM B) 1 Parallel port supports SPP/EPP/ECP mode 4 USB ports (rear x2 / front x2, one for USB PC2PC) 1 IrDA/HP connector for SIR D-Bracket pin header BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension ATX Form Factor, 4 layers PCB. Mounting 6 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
