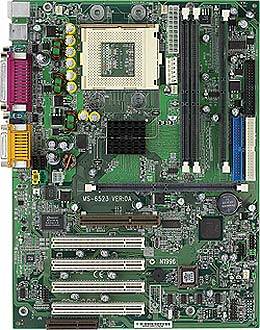

850 Pro2 (MS-6523)- MicroStar
Special Features USB PC2PC CPU Support Socket 423 for Intel® Pentium® 4 (FC-PGA) Processor. Supports 1.4GHz to 1.7GHz Chipset Intel® 850 chipset Up to 2GB maximum memory (RAMBUS). AGP Pro interface with 4x SBA/Data Transfer. Intel® ICH2 chipset AC97 Controller Integrated. 2 full IDE channels, up to ATA100. Low pin count interface for SIO. 4 USB ports. FSB Supports 400MHz FSB Main Memory Four 168-pin gold-lead RIMM sockets. Supports a maximum memory size of 2GB. Slots One CNR (Communication Network Riser). One AGP Pro with 4x mode. Four 32-bit/33Mhz Master PCI bus slots. Supports 3.3v/5v PCI bus interface. On-Board IDE An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 100 operation modes. Can connect up to four IDE devices. Audio ICH2 chip integrated. AC'97 Codec. Integrated Super I/O Controller Winbond W83627HF-AW I/O controller. 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B) 4 USB ports 1 Parallel port supports SPP/EPP/ECP mode. 1 IrDA connector for SIR. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. IDE drive auto configure, Advanced Power Management(APM)1.2, ACPI 1.0, DMI2.0, ECC/Parity support. Dimension ATX Form Factor, 4 layers PCB Mounting 12 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
