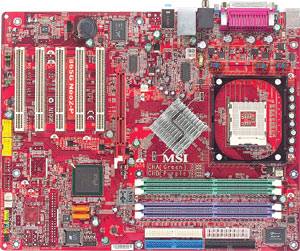

865G Neo2-PLS - Microstar Micro-star MSI
12 in.(L) x 9.65 in.(W); ATX • 4 DIMMs w/ DDR400 upto 4GB • 1 AGP 8X; 5 PCI; 8 USB • 6 Ch. Audio; 10/100 LAN; SATA; ATA100 • Integrated Intel Extereme Graphic 2 supports up to 64MB of video memory • Live Update; Fuzzy Logic; PC Alert; MSI CoreCell; MSI CoreCenter MSI Part No: MS-6728-090 CPU • Supports Intel® Pentium 4 Northwood/Prescott (Socket 478) processors. • FSB 400 (for Northwood only), 533, 800MHz • Supports up to 3.2GHz or higher speed. Chipset • Intel® 865G Chipset - Supports FSB 800/533/400MHz - Supports AGP 8X interface - Integrated graphics controller - Supports DDR 400/333/266 memory interface • Intel® ICH5 Chipset - Hi-Speed USB (USB2.0) controller, 480Mb/sec, 8 ports - 2 Serial ATA/ 150 ports - 2 channel Ultra ATA 100 bus Master IDE controller - PCI Master v2.3, I/O APIC - Supports both ACPI and legacy APM power management Main Memory • Supports four unbuffered DIMM of 2.5 Volt DDR SDRAM • Supports up to 4GB memory size without ECC • Supports Dual channel DDR266/333/400/433/466/500/533 MHz and up. (DDR433/466/500/533 are overclocking spec, also refer to User's Manual) Slots • One AGP slot supports 8X/4X at 0.8V (AGP 3.0) or 4X at 1.5V (3.3V is not supported) • Five 32-bit v2.3 Master PCI bus slots (support 3.3.3V/5V PCI bus interface) BIOS • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. On-Board IDE Dual Ultra DMA 66/ 100 IDE controllers integrated in ICH5 - Supports PIO, Bus Master operation modes - Can connect up to four Ultra ATA drives Serial ATA/ 150 controller integrated in ICH5 - Up to 150MB/s transfer speed - Can connect up to 2 Serial ATA drives Audio AC97 link controller integrated in Intel® 865PE Chipset 6-channel audio codec Realtek ALC655 - Compliance with AC97 v2.3 Spec. - Meet PC2001 audio performance requirement LAN Realtek® 8100C - Integrated Fast Ethernet MAC and PHY in one chip - Supports 10Mb/s, 100Mb/s - Compliance with PCI 2.2 - Supports ACPI Power Management On-Board Peripherals - 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 1 serial port COM1, 1 VGA port - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 1 Line-In / Line-Out / Mic-In / Real Speaker Out / Center-Subwoofer Speaker Out / SPDIF Out-Optical audio port - 1 RJ45 LAN jack Dimension ATX Form Factor: 30.5 cm (L) x 24.5 cm (W) Mounting 9 mounting holes Accessories CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
