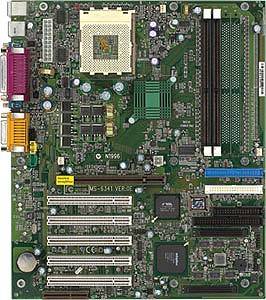

K7 Master-S (MS-6341)- MicroStar
Special Features Live BIOS Fuzzy logic 3 D-LED Onboard Ultra 160 SCSI CPU Socket A (Socket 462) for AMD® Athlon™/Duron™ Processor Supports 600MHz-1.2GHz processor Chipset AMD® 761 chipset. (North-Bridge 569 BGA) Supports 266MHz high speed, split transaction system bus. AGP 4x and PCI Advanced high performance memory controller. Supports 266MHz DDR SDRAM technology. VIA® VT82C686B chipset. (South-Bridge 352 BGA) Enhanced Power Management Features. Integrated Super I/O (FDC, LPT, COM 1/2, IR). Dual bus Master IDE Ultra DMA 33/66/100. Integrated Hardware SoundBlaster. DirectSound AC97 Audio, ACPI. FSB 133MHz (266MHz Internal System Bus). Main Memory Two 184-pin DDR DIMM using four memory banks. Supports a maximum memory size of 2GB. Supports DDR SDRAM DIMM. Slots One CNR (Communication Network Riser). One AGP PRO/AGP 4x slot. Five PCI 2.2 32-bit Master PCI bus slots. Supports 3.3v/5v PCI bus interface. On-Board SCSI Ultra 160 SCSI Connector: Adaptec AIC-7892 On-Board IDE An IDE controller on the VIA VT82C686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices. Audio Chip Integrated DirectSound AC97 Audio. On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B), 1 Parallel port supports SPP/EPP/ECP mode. 4 USB ports (2 Rear Connectors/USB Front Pin Header). 1 IrDA connector for SIR/ASKIR/HPSIR. 1 Audio/Game port. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension ATX Form Factor, 6 layers PCB. Mounting 9 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
