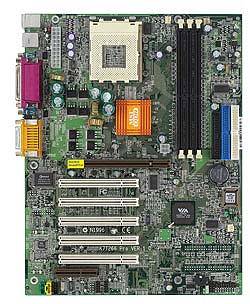

K7T266 PRO (MS-6380)- MicroStar
Special Features D-LED Live BIOS Fuzzy Logic 3 PC 2 PC CPU Socket A (Socket 462) for AMD® Athlon™/Duron™ Processor. Supports 600MHz-1.5GHz processor Chipset VIA® VT8366 chipset. (North-Bridge 552 BGA) 266MHz FSB AGP 4x and PCI Advanced high performance memory controller. VIA® VT8233 chipset. (South-Bridge 376 BGA) High Bandwidth Vlink Client controller. Integrated Faster Ethernet LPC. Integrated Hardware SoundBlaster/Direct Sound AC97 audio. Ultra DMA 33/66/100 master mode PCI EIDE controller. ACPI FSB Supports 200/266MHz FSB Main Memory Three 184-pin DDR DIMM. Maximum memory size up to 3GB. Supports 2.5v DDR SDRAM DIMM. Slots One CNR (Communication Network Riser). One AGP 4X slot. Five PCI 2.2 32-bit Master PCI bus slots. Supports 3.3v/5v PCI bus interface. On-Board IDE An IDE controller on the VIA VT8233 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices. USB Interface USB PC 2 PC Networking Function. 6 USB ports: 2 rear and 4 front ports supported by JUSB2 & JUSB3. Audio Chip Integrated DirectSound AC'97 Audio. 64 Voice WaveTable Synthesizer, Sound library of over 4000 different sounds. Support SPDIF (AC3). Supports Microsoft Direct Sound, Direct Sound 3D, Direct Music, and A3DAPI. On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B), 1 Parallel port supports SPP/EPP/ECP mode. 1 IrDA connector for SIR/ASKIR/HPSIR. 1 Audio/Game port. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension ATX Form Factor. Mounting 6 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
