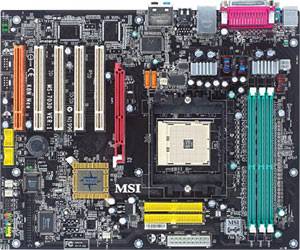

K8N Neo-FSR - Microstar Micro-star MSI
12 in.(L) x 9. 4 5 in.(W); ATX • 3 DIMMs w/ DDR 400 upto 3 GB • 1 AGP 8X; 5 PCI; 8 USB • 8 Ch. Audio; Gb LAN; IEEE 1394; RAID; SATA; ATA133 • Live Update; Fuzzy Logic; PC Alert; MSI CoreCell; MSI CoreCenter; DOT , DigiCell; nVidia Firewall MSI Part No: MS-7030-020 CPU • Supports 64-bit AMD® Athlon™ 64 processor (Socket 754) • Supports 2800+, 3000+, 3200+ and 3400+ or higher Chipset • nVIDIA® nForce3 250Gb Chipset - Supports Athlon™ 64 processor (Socket 754), 800MHz Hypertransport interface. - supports single memory channels, DDR 400/333/266 unbuffered memory. - Supports external AGP 4X/8X - Integrated Serial ATA interface: dual channel 4 S-ATA RAID controller and dual channel ATA 133/100/66/33 master mode EIDE controller. - Integrated an nVIDIA MAC for Gigabit LAN. - Supports 8 high speed USB2.0 ports. - AC'97 2.3 compliance. Main Memory • Supports 3 slots for 184-pin DDR SDRAM DIMM modules. • Supports the memory size up to 2GB. • Supports unbuffered ECC/ non-ECC DDR 400/333/266. Slots • One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot • Five 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface). On-Board IDE/SATA • An IDE controller on the nVIDIA nForce3 250Gb chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. - Can connect up to 4 IDE devices • 2 S-ATA RAID controller and dual channel ATA 133/100/66/33 master mode EIDE controller. • Supoprt up to 2 SATA plus 4 ATA133 Hard drive - RAID 0 or 1, 0+1 - RAID function work w/ATA133 + SATA H/Ds, SATA H/Ds or ATA133 H/Ds BIOS • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. Audio • 7.1 channel audio codec RealTek ALC850. - Compliance with AC97 v2.3 Spec. - Meet PC2001 audio performance requirement. LAN • nVIDIA® nForce3 NV Gigabit LAN controller - Integrated Fast Ethernet MAC and PHY in one chip. - Supports 10Mb/s, 100Mb/s and 1000Mb/s auto-negotiation operation. - Compliant with PCI v2.2. - Supports ACPI Power Management. On-Board Peripherals - 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port - 1 parallel port supports SPP/EPP/ECP mode - 1 audio jack (5-in-1), coaxial/fibre SPDIF out - 1 IrDA connector for SIR/ASKIR/HPSIR - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 1 RJ45 LAN jack Dimension 30.5cm(L) x 24.5cm(W) ATX Form Factor Mounting 9 mounting holes Accessories CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
