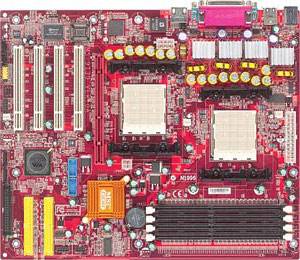

K8T Master2 FAR - Microstar Micro-star MSI
12 in.(L) x 10 in.(W); ATX • 4 DIMMs w/ DDR 400 upto 8 GB • 1 AGP 8X; 4 PCI; 4 USB • Gb LAN; IEEE 1394; RAID; SATA; ATA133 • Live Update; Fuzzy Logic; PC Alert; System Management MSI Part No: MS-9130 CPU • Supports Single CPU (Socket 940) for AMD® Athlon-64 FX 51 series or Opteron 100 series (1-way) or Opteron 200 series (2-ways) CPU. • Supports Dual CPUs (Socket 940) for AMD® Opteron™ 200 series (2-ways) processors and up (SledgeHammer DP) Chipset • VIA® K8T800™ Chipset - 800MHz HyperTransport FSB - Support for AGP 2X/4X/8X/Pro - Ultra V-Link 1.06GB/s high bandwidth North/South Bridge interconnect • VIA® VT8237™ Chipset - A 33MHz/32bit PCI 2.2 compliant bus interface supports up to 6 external devices. - Dual Channel Serial ATA/RAID (0, 1) - Dual Channel ATA 33/66/100/133 - USB 2.0, 6 ports, UHCI compliant - Advanced power management capabilities - Including ACPI/OnNow - LPC bus to connect peripherals such as super I/O and BIOS. - IO APIC controller. Main Memory • 144-bit DDR at 200, 266, 333MHz, 400MHz. • Supports DIMM sizes from 64MB (128Mb x 16 DRAMs) to 2GB on each DIMM slot. • Supports 4 DDR DIMMs upto 8GB (Registered Memory only) • Supports interleaving memory within DIMMs. • ChipKill ECC allows continuous correction of 4-bit errors in a failed x 4 memory device. • For Single AMD® Athlon-64 FX 51 series, it will support Registered Memory up to DDR 400 • For Single orDual AMD® Opteron Series, it will support Registered Memory up to DDR 333 DDR 400 Registered ECC Memory Validation Samsung M312L3223EG0-CCC 256MB Registered PC3200 LP Samsung M312L6420EG0-CCC 512MB Registered PC3200 LP Slots • 1 AGP Pro slot • 4 PCI 32-bit/33MHz slots BIOS • 4Mb Flash EEPROM • PCI 2.2 compliant, VPD, and DMI • PnP 1.0A, SMBIOS 2.3, ACPI 1.0A, 2.0 • Supports PXE boot protocol • APM 1.2, WOL • PC2001 system design compliant Onboard Connector • Power connectors (24+8 SSI) • Front panel connector • Four 3-pin cooling fan locking header(2 for system & 2 for CPUs) • 3-pin Clear CMOS header with a jumper • Stacked Mouse and keyboard ports • USB header (Front), Stacked 2 USB (Rear) • RJ-45 with LEDs • Stacked 2 serial and 1 parallel ports Power Management Features • Wake up on LAN (WOL), USB, PCI, Mouse • RTC alarm • Supports ACPI S1, S2, S4 and S5 functions System Management • SMBus (I2C) • Temperature, voltage, and fan monitors • Chassis intrusion Onboard I/O • 1 PS/2 keyboard port • 1 PS/2 mouse port • 1 floppy port • 2 IDE ports • 2 serial ports • 1 parallel port • 4 USB ports (two on front and two on rear). • 2 SATA ports Network • Broadcom BCM5705 Gigabit LAN controllers - Provides 1000, 100 and 10MB/s data rates PC Health Monitoring • Two onboard voltage monitors for CPU core/s, 2.5V, 3.3V, -12V, +12V, 5V, 5VSB,VBAT status monitor • CPU/Chassis temperature monitoring • LED and control for chassis intrusion detection • Support for system management software Dimension ATX Form Factor: 25.4 x 30.5cm Mounting 9 mounting holes CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
