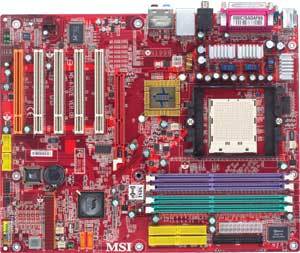

K8T Neo2-F - Microstar Micro-star MSI
12 in.(L) x 9. 4 5 in.(W); ATX • 4 DIMMs w/ DDR 400 upto 4 GB • 1 AGP 8X; 5 PCI; 8 USB • 8 Ch. Audio; Gb LAN; RAID; SATA; ATA133 • Live Update; Fuzzy Logic; PC Alert; MSI CoreCell; MSI CoreCenter; DOT, DigiCell MSI Part No: MS-6702E-020 CPU • Supports 64-bit AMD K8 Athlon 64/Athlon 64 FX Processor (Socket 939) • Supports 64-bit AMD K8 Athlon 64 3500+ and higher CPU • Supports 64-bit AMD K8 Athlon 64 FX processor FX-53 and up Chipset • VIA® K8T800 Pro Chipset - HyperTransport connection to AMD K8 Athlon 64/Athlon 64 FX processor - 8 or 16 bit control/ address. data transfer both directions - 1000/800/600/400/200MHz "Double Data Rate" operation both direction - AGP v3.0 compliant with 8X transfer mode • VIA® VT8237 Chipset - Ultra DMA 66/100/133 master mode EIDE controller - Integrated dual channel native Serial ATA/RAID controller that will supply 150MB/s and support RAID 0, RAID 1 - ACPI & PC2001 compliant enhanced power management - Supports 8 USB2.0 ports. (Rear x4/ Front x4) Main Memory • Supports four 184-pin DDR SDRAMs up to 4GB memory size • Supports DDR400*/DDR333/DDR266 DDR SDRAM (*Refer to MSI recommended modules) • Note: PC3200 (DDR400) maximum 8 banks (2 double-sided) only Due to the High Performance Memory design, motherboards or system configurations may or may not operate smoothly at the JEDEC (Joint Electron Device Engineering Council) standard settings (BIOS Default on the motherboard) such as DDR voltage, memory speed Example: Kingston HyperX DDR500 PC4000 operates at 2.65V, 3-4-4-8, CL=3. For more information about specification of high performance memory modules, please check with your Memory Manufactures for more details. Slots • One AGP (Accelerated Graphics Port) 1.5V 4x/8x slot • Five PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v / 5v PCI bus interface) BIOS • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. On-Board IDE • An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes. It can connect 4 Ultra ATA drives. • Serial ATA/150 controller integrated in VT8237 - Up to 150MB/s transfer speed - Can connect up to 2 Serial ATA drives - Support RAID 0, RAID 1 Audio • 8 Channel software audio codec Realtek ALC850 • Compliance with AC97' v2.3 Spec • Meet PC2001 audio performance requirement • Provide onboard SPDIF out Network • Realtek 8110S Dual layout • Integrated Gigabit Ethernet MAC and PHY transceiver, auto-negotiation operation. • Supports single-port 10MB/s, 100MB/s, 1000MB/s Base-T application. • Compliance with PCIv2.2 and LAN on Motherboard (LOM) standard. On-Board Peripherals - 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial ports COM1 - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 5 audio ports in vertical (Left, Center, Right, Line-in, MIC) - 1 SPDIF out - 1 RJ-45 jack - 1 IrDA connector for SIR/ASKIR/HPSIR Dimension 30.5 cm(L) x 24.5 cm(W) ATX Form Factor Mounting 9 mounting holes Accessories CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
