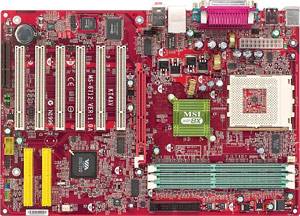

KT4AV-L - Microstar Micro-star MSI
11.6 in.(L) x 8.43 in.(W); ATX • 3 DIMMs w/ DDR 400 upto 3 GB • 1 AGP 8X; 6 PCI; 6 USB • 6 Ch. Audio; 10/100 LAN; ATA133 • Live Update; Fuzzy Logic; PC Alert MSI Part No: MS-6712 CPU • Supports Socket A (Socket 462) for AMD® Athlon™ XP/ Athlon™/Duron™ processor • Supports 600MHz up to 3000+ MHz processor and higher Chipset • VIA® KT400A chipset (552 BGA) - FSB @200/266/333 MHz - AGP 8X and PCI advanced high performance memory controller. • VIA® VT8235 chipset (376 BGA) - High Bandwidth V-link Client controller - Integrated aster Ethernet LPC - Integrated Hardware Sound Blaster/Direct Sound AC97 audio - Ultra DMA 66/100/133 master mode PCI EIDE controller - Integrated USB 2.0 Host Controller - ACPI FSB 200/266/333 MHz clocks are supported Main Memory • Supports up to six memory banks using three 184-pin DDR SDRAMs. • Supports up to 3GB memory size. • Support 2.5v DDR SDRAM DIMM • Supports DDR200/266/333/400* memory. (*Refer to MSI recommanded module) Due to the High Performance Memory design, motherboards or system configurations may or may not operate smoothly at the JEDEC (Joint Electron Device Engineering Council) standard settings (BIOS Default on the motherboard) such as DDR voltage, memory speed Example: Kingston HyperX DDR500 PC4000 operates at 2.65V, 3-4-4-8, CL=3. For more information about specification of high performance memory modules, please check with your Memory Manufactures for more details. Slots • One AGP (Accelerated Graphics Port) slot. - AGP specification compliant - Supports AGP 2.0 4x/8x. • Six 32-bit PCI bus slots (support 3.3v/5v PCI bus interface). • One CNR (Communication Network Riser) slot BIOS • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. On-Board IDE • An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. • Can connect up to 4 IDE devices USB Interface • 6 USB 2.0 ports (Rear * 4/ Front * 2) Audio • RealTek ALC650 6-channel audio On-Board Peripherals - 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 2 serial ports (COM A + COM B) - 1 parallel port supports SPP/EPP/ECP mode - Vertical audio port - 1 D-Bracket2 pinheader - On-Board 10/100 ethernet Dimension 30.5 cm(L) x 21 cm(W) ATX Form Factor Mounting 6 mounting holes Accessories CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
