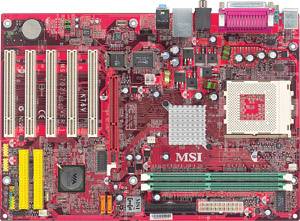

KT6V-LSR - Microstar Micro-star MSI
11.6 in.(L) x 8.07 in.(W); ATX • 2 DIMMs w/ DDR 400 upto 2 GB • 1 AGP 8X; 5 PCI; 8 USB • 6 Ch. Audio; 10/100 LAN; RAID; SATA; ATA133 • Live Update; Fuzzy Logic; PC Alert; MSI CoreCell; MSI CoreCenter MSI Part No: MS-7021 CPU • Supports Socket A for AMD® Athlon™/Athlon™ XP/Duron™ processors @FSB 200/266/333/400 MHz • Supports to Athlon™ XP 3200+ processor or higher Chipset • VIA® KT600 Chipset - Supports FSB @200/266/333/400MHz - Supports dual channel native SATA controller up to 150MB/s with Raid 0 or Raid 1 - Integrated Hardware Sound Blaster/Direct Sound AC97 audio - Ultra DMA 66/100/133 master mode PCI EIDE controller - ACPI & PC2001 compliant enhanced power management - Supports USB2.0 up to 8 ports • VIA® VT8237 Chipset - Integrated Hi-Speed USB 2.0 controller, 480Mb/sec, 8 ports - 2 Serial ATA/ 150 ports - 2 channel Ultra ATA 100 bus Master IDE controller - PCI Master v 2.3, I/O APIC - Supports both ACPI and legacy APM power management - Serial ATA/150 RAID 0 Main Memory • Supports four memory banks using two 184-pin DDR DIMMs • Supports a maximum memory size up to 2GB • Supports 2.5v DDR SDRAM DIMM • Supports DDR400/333/266/200 SDRAM Slots • One AGP (Accelerated Graphics Port) slot - AGP specification compliant - Support AGP 3.0 Five 32-bit Master PCI Bus slots • Supports 3.3V/5V PCI bus Interface BIOS • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. On-Board IDE • An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes. It can connect 4 Ultra ATA drives. • Serial ATA/150 controller integrated in VT8237 - Up to 150MB/s transfer speed - Can connect up to 2 Serial ATA drives - Support RAID 0, RAID 1 USB Interface 8 USB ports - Controlled by VT8237 southbridge - 4 ports in the rear I/O, 4 ports via the external bracket Audio AC'97 link controller integrated in VIA 8237 5.1 channel audio supported by Realtek ALC655 codec - Compliance with AC'97 v2.2 spec. - Meet PC2001 audio performance requirement On-Board Peripherals - 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial ports (COM A ) - 1 parallel port supports SPP/EPP/ECP mode - Line-In/Line-Out/Mic-In port - 1 RCA SPDIF Out - 1 RJ-45 jack - 1 D-Bracket2 pinheader Dimension 29.5 cm(L) x 20.5 cm(W) ATX Form Factor Mounting 9 mounting holes Accessories CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
