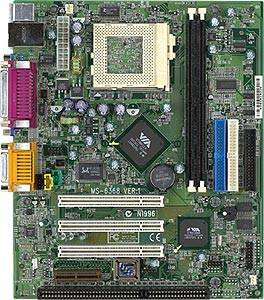

PLE 133 (MS-6368 v2.1A)- MicroStar
CPU Socket 370 for Intel® Pentium® III (FC-PGA) / Celeron™ Processor. Supports 333MHz-1GHz processor Chipset VIA® VT8601A chipset. (North-Bridge 510 BGA) FSB @133MHz Integrated Trident Blade 2D/3D Video Accelerator AGP 4x and PCI Advanced high performance memory controller. Support PC100/133 SDRAM, VCM, ESDRAM technology. VIA® VT82C686B chipset. (South-Bridge 352 BGA) Enhanced Power Management Features. Integrated Super I/O (FDC/LPT/COM 1&2/IR). Dual bus Master IDE Ultra DMA 33/66/100. DirectSound AC97 Audio, ACPI FSB 66/100/133MHz FSB Main Memory Two 168-pin unbuffered DIMM using four memory banks. Support a maximum memory size of 1GB (32M x 8). Supports 3.3v SDRAM DIMM. Slots One CNR (Communication Network Riser) Three 32-bit Master PCI bus slots Supports 3.3v/5v PCI bus interface. ISA slot is optional On-Board IDE An IDE controller on the VIA VT82C686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes. Can connect up to four IDE devices. Audio Audio controller integrated in 686B chipset. Software audio codec ALC100. On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 1 Serial port, 1 Parallel port supports SPP/EPP/ECP mode. (Optional 2nd serial port available) 4 USB ports. 1 IrDA connector for SIR/ASKIR/HPSIR. 1 Audio/Game port. 1 VGA connector. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension Micro ATX Form Factor. Mounting 6 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
