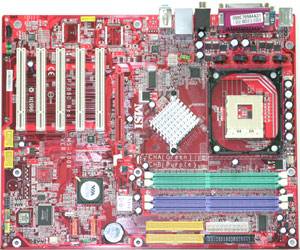

PT880 Neo-LSR - Microstar Micro-star MSI
12 in.(L) x 9.65 in.(W); ATX • 4 DIMMs w/ DDR400 upto 4GB • 1 AGP 8X; 5 PCI; 8 USB • 6 Ch. Audio; 10/100 LAN; SATA; RAID; ATA133 • Live Update; Fuzzy Logic; PC Alert; MSI CoreCell MSI Part No: MS-7008 CPU • Supports Socket 478 for Intel® Pentium 4 (Northwood) / Prescott/ Extereme Edition processor • Supports up to 3.4 GHz/FSB 800 • Supports FSB 400/533/800MHz Chipset • VIA PT880 Chipset - Supports FSB 400/ 533/800 MHz - Support Dual channel DDR 400*/333/266 memory upto 4 GB - Support AGP 8x or 4x at 0.8V (AGP 3.0) or 4x at 1.5V (not support 3.3V) • VIA® VT8237 Chipset - High Bandwidth V-Link Client controller - Integrated Faster Ethernet LPC - Integrated Hardware Sound AC'97 audio - Ultra DMA 66/100/133 master mode PCI EIDE controller - ACPI - Supports Serial ATA RAID 0, RAID 1 - Supports USB 2.0 Main Memory • Support 8 memory banks by using four 184-pin DDR DIMMs • Support Dual Channel DDR 400/333/266 MHz Due to the High Performance Memory design, motherboards or system configurations may or may not operate smoothly at the JEDEC (Joint Electron Device Engineering Council) standard settings (BIOS Default on the motherboard) such as DDR voltage, memory speed Example: Kingston HyperX DDR500 PC4000 operates at 2.65V, 3-4-4-8, CL=3. For more information about specification of high performance memory modules, please check with your Memory Manufactures for more details. Slots • One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3v is not supported) • Five PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v / 5v PCI bus interface) BIOS • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. On-Board IDE An IDE controller on the VIA VT8237 chipset provides IDE HDD/ CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes. - Can connect up to 4 Ultra ATA drives Serial ATA/ 150 controller integrated in VT8237 - Up to 150MB/s transfer speed - Support RAID 0, RAID 1 - Can connect up to 2 Serial ATA drives Audio 6 Channel software audio codec Realtek ALC655 - Compliance with AC97 v2.2 Spec - Meet PC2001 audio performance requirement LAN VIA 8237 integrated MAC + Realtek 8201BL PHY - Supports 10Mbps and 100Mbps auto-negotiation operation. - Supports ACPI Power Management . On-Board Peripherals - 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port (COM A) - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear x 4 / **Front x 4 ) (**Front USB ports are supported by pin-out) - 1 Line-In/Line-Out/Mic-In port - 2 PS/2 connectors - 1 LAN RJ45 connector Dimension 30.5 cm(L) x 2 4.3 cm(W) ATX Form Factor Mounting 9 mounting holes Accessories CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
