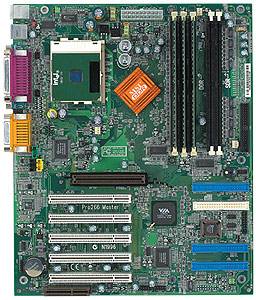

Pro266 Master (MS-6366)- MicroStar
Special Features D-LED Live BIOS Fuzzy Logic 3 PC 2 PC CPU Support Socket 370 for Intel® Pentium® III (FC-PGA)/Celeron™ Processor or VIA® Cyrix™ / Samuel™ III Processor. Celeron 433-733MHz or faster. Pentium III 500-800MHz @100MHz FSB. Pentium III 533MHz-1.13GHz @133MHz FSB. Cyrix III 500-733MHz @133MHz FSB. Chipset VIA® VT8633 chipset. (North-Bridge 552 BGA) AGP 4x and Vlink plus Advanced ECC Memory Controller. Supports 66/100/133MHz FSB Support PC100/133 SDRAM and PC200/266 DDR technology VIA® VT8233 chipset. (South-Bridge 376 BGA) High Bandwidth Vlink Client controller. Integrated Faster Ethernet LPC. Integrated Hardware SoundBlaster/Direct Sound AC97 audio. Ultra DMA 33/66/100 master mode PCI EIDE controller. ACPI FSB 66/100/133 MHz Programmable(48-pin clock programmable + 56-pin buffer). Main Memory Three 184-pin DDR DIMM, maximum size up to 3GB. Two 168-pin SDRAM DIMM, maximum size up to 2GB. Slots One CNR (Communication Network Riser). One AGP v2.0, 4x slot Five PCI 2.2 32-bit Master PCI bus slots. Supports 3.3v/5v PCI bus interface. On-Board IDE An IDE controller on the VIA VT8233 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices. Audio Chip Integrated DirectSound AC'97 Audio. 64 Voice WaveTable Synthesizer, Sound library of over 4000 different sounds. Support SPDIF (AC3). Supports Microsoft Direct Sound, Direct Sound 3D, Direct Music, and A3DAPI. On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. 2 Serial ports (COM A + COM B), 1 Parallel port supports SPP/EPP/ECP mode. 6 USB ports (Rear*2 / Front*2 for 4 ports) and 1 IrDA connector for HPSIR/SIR/CIR/FIR/ASKIR. 1 Game port, 3 Audio ports, and on board buzzer. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications. Dimension ATX Form Factor. Mounting 6 mounting holes. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : MICROSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
