Stallion ATX-SY-6BA SYSTEM BOARD - M Technology

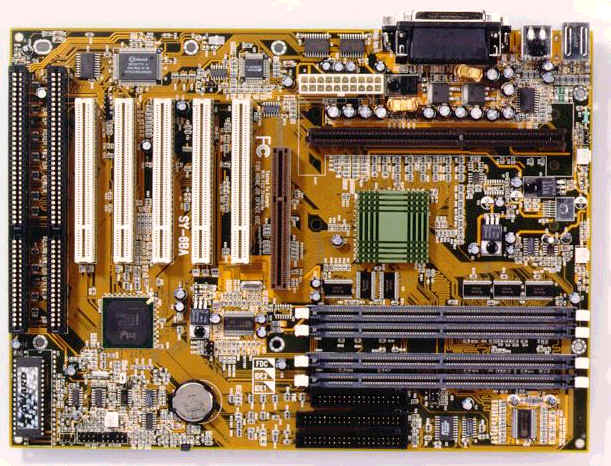

Stallion ATX-SY-6BA SYSTEM BOARD (Supports P-II-450) -------------------------------------------------------------------------------- (Click for larger image) FEATURE HIGHLIGHTS Based on the Intel 82440BX PCI Chipset Supports EDO & SDram Memory Supports Intel Pentium II - 233MHz to 450MHz Slot 1 Processors On Board AGP and Ultra DMA/33 with ACPI compliancy The M Technology SY-6BA provides the latest enhancements in system board technology. Based on the Advanced Intel 82440BX PCIset, the board provides high PCI-to-memory bandwith for today's demanding applications. The processor support ranges from the faste Specifications: Processor: Supports Single Slot 1 Processor Intel Pentium II Processor Card (with internal 256 / 512 KB cache) 100MHz & 66MHz FSB (Front Side Bus) Chipset: Intel 82440BX PCI Chipset Winbond I/O Chipset Expansion Slots: One 32-Bit AGP Slot Five 32-Bit Bus Mastering PCI Slots Two 16-Bit ISA Slots One pair of sharable PCI/ISA Slots System Memory: Four 168-pin DIMM Slots (8/16/32/64/128 MB Module) Supports Maximum with 1GB of SDRAM On Board IDE: 2 X IDE Connectors For Up To 4 IDE Drives - PIO Mode 4 Transfers - PCI Bus Master Mode IDE Interface - Supports Ultra IDE Mode I/O On Board: One FDD Port (Supports 360/720KB, 1.2/1.44/2.88 MB FDD) Two RS-232 Serial Ports (16550 UART Compatible) One Parallel Printer Port (SPP/EPP/ECP Mode) IrDA Port with Optional Cable for Transceiver/Receiver PS/2 Mouse Port On Board USB: Universal Serial Bus Controller - Host / HUB Controller - Two USB Port Connectors BIOS: Award PCI BIOS With Green, Plug & Play and DMI Functions - Supports Multiple Boot From E-IDE/SCSI/CD-ROM/FDD/ZIP-Drive/LS-120 - 2MB Flash ROM Board Size: 4-Layer of PCB, 22.0 cm X 30.5 cm ATX Form Factor Other Features: PC97 ACPI Compliance Ultra DMA 33 ATA E-IDE Interface Sofset Frequency WOL (Wake on LAN) header Creative PCI sound card SB-LINKTM ACPI wake on keyboard/mouse BIOS For Monitoring System Environment, Temperature and Voltage Optional LDCM (LANDesk Client Manager) Utility For Networking Documentation: Complete User Installation Manual Quality Commitment: The continuously evolving technology of the computer industry demands the highest level of quality, reliability and compatibility. M Technology is committed to providing the industry's state-of-the-art manufacturing, testing, and customer support. The SY-6BA is extensively tested for compatibility under various operating systems, including: OS/2TM Warp SCO® UNIX ODT MS-DOSTM v 5.0, 6.2 NOVELL WindowsTM v 3.1, 95 & NTTM PC-DOS CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : M Technology MTechnology M-Technology Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
